Getting Started

Configuration

Certificates

MergeBack automatically generates self-signed certificates during the installation step and places them in the installation folder (/opt/mergeback/certs).

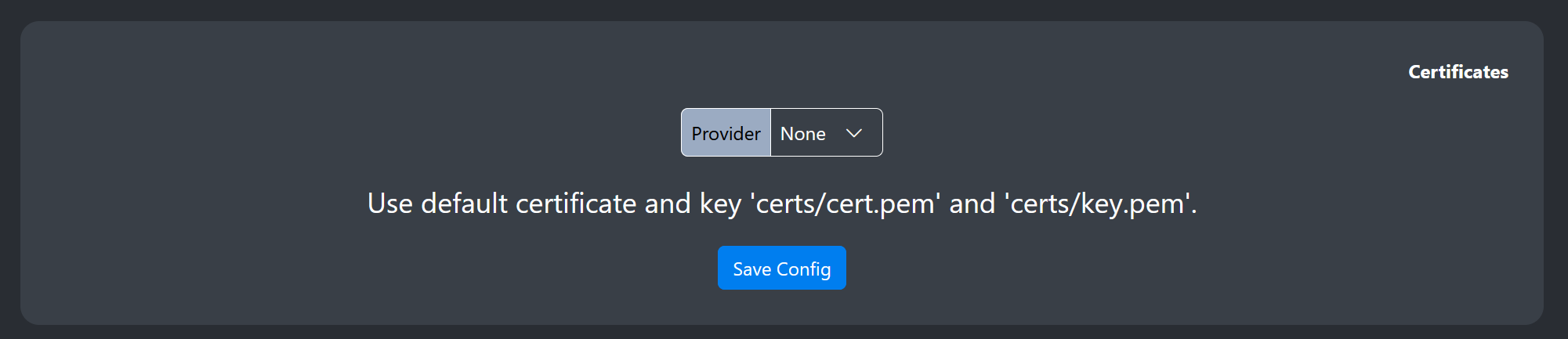

Image of default certificate configuration

In order to eliminate security warnings when opening the product in browsers administrators need to either install these self-signed certificates on end-users machines or replace them.

Your options for replacing the existing certificates are:

  • Let's Encrypt
  • ACME Certificate Provider
  • Upload custom certificate

Let's Encrypt

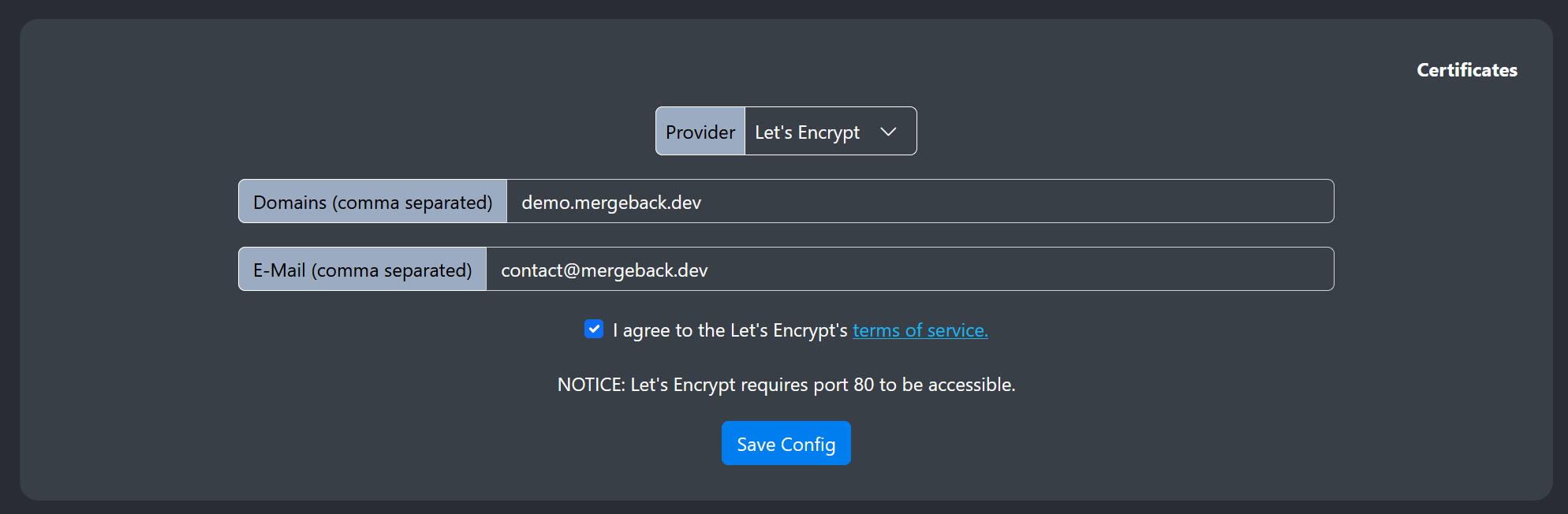

Image of Let's Encrypt certificate configuration

If the product can be accessed via the public internet it is possible to use Let's Encrypt to generate and install signed certificates automatically.

This feature only works if Let's Encrypt's servers are able to connect to the host running MergeBack (indicated by the value you place in the 'Domains' field). Let's Encrypt will need to access port 80 on the host in order to verify the request made by MergeBack.

MergeBack will also periodically request replacement certificates on its own should the current ones reach their expiration date.

ACME Certificates

This option functions the same way as Let's Encrypt except it is up to the user to provide the information on how to connect to the certificate provider. This is primarily intended for organizations that may be running their own certificate provider.

Upload Certificates

This option allows users to upload their own certificates and their associated private key.

Note: The product expects PEM encoded certificate and key files. The key file should not be password protected.

Users and Groups

MergeBack includes basic functionality around managing users and groups, including

  • User and group permissions
  • Group roles
  • Fake users
  • User invites
  • Password resets

Adding Users and Groups

Adding users and groups is performed via the system management interface accessible by the 'admin' user via the 'Manage' shortcut in the top navbar. All other users will not have access to this screen.

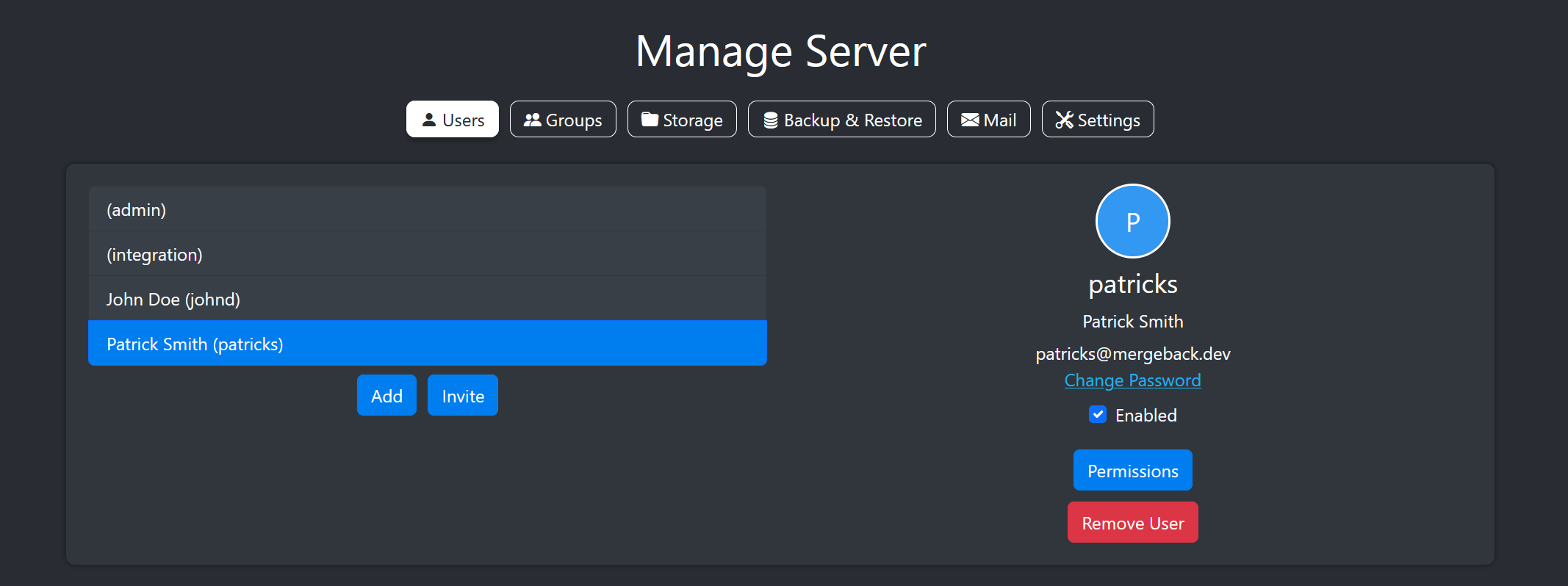

Image of the user management screen

A user can be added manually by clicking the 'Add' button and filling out the necessary information

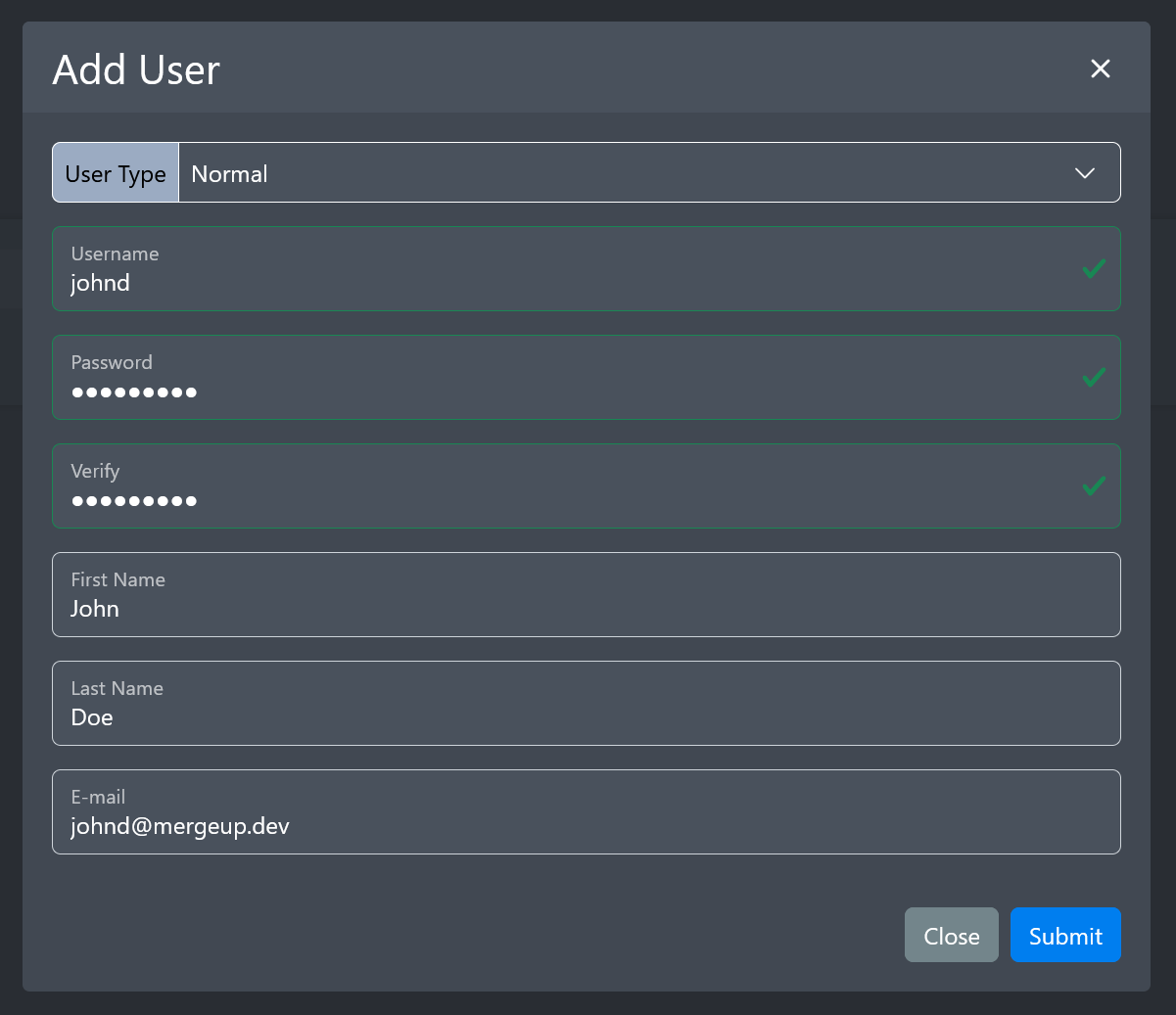

Image of the add user modal

Additionally a user invite can be generated and sent to the user and allow them to finalize the user creation process themselves

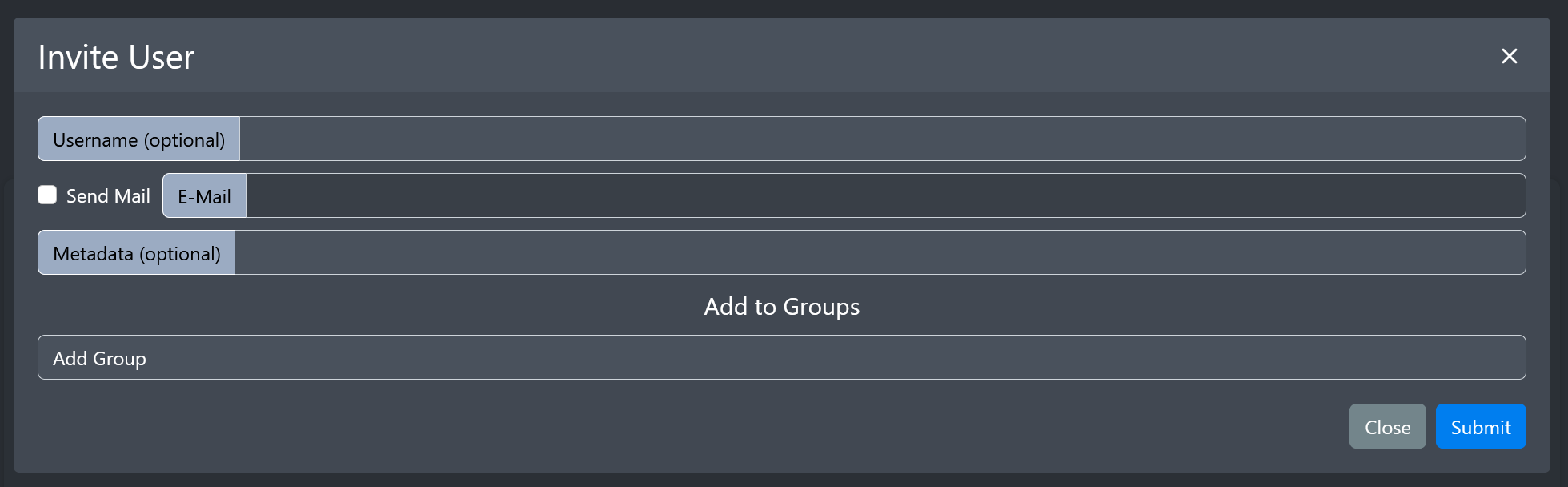

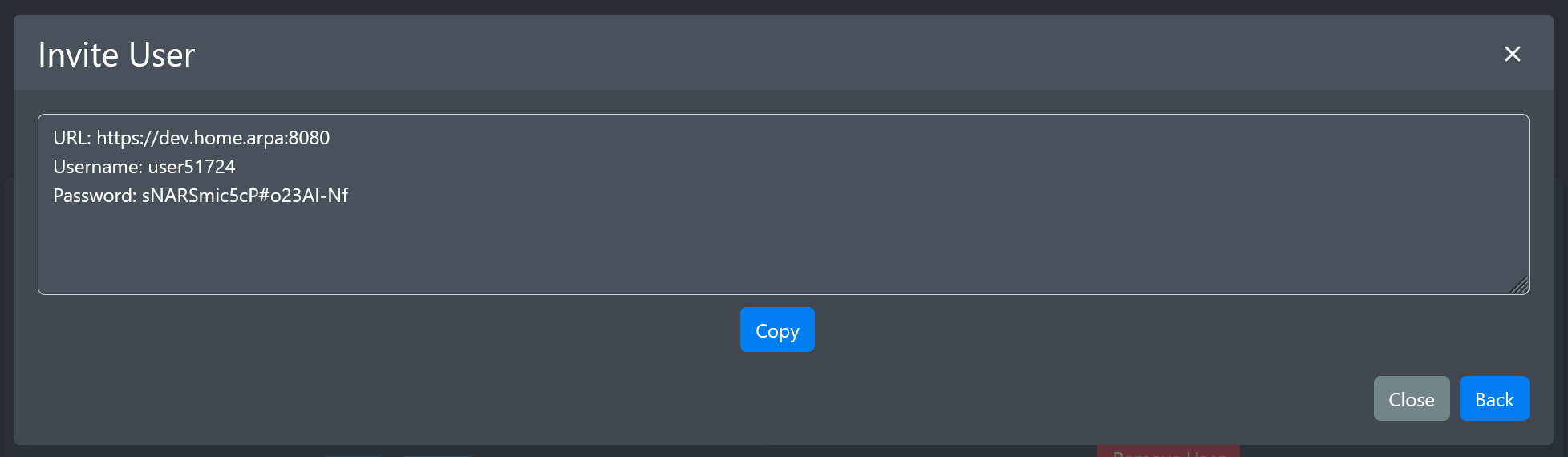

Image of the invite user modal
Image of the invite user message

The username for the user invite can either be set by the administrator or auto-generated and set by the user when they finish setting up their account. Additionally the administrator can attach metadata to the invite/user in case the account is associated with some external application.

Unclaimed user invites will eventually be expired and removed by the system automatically

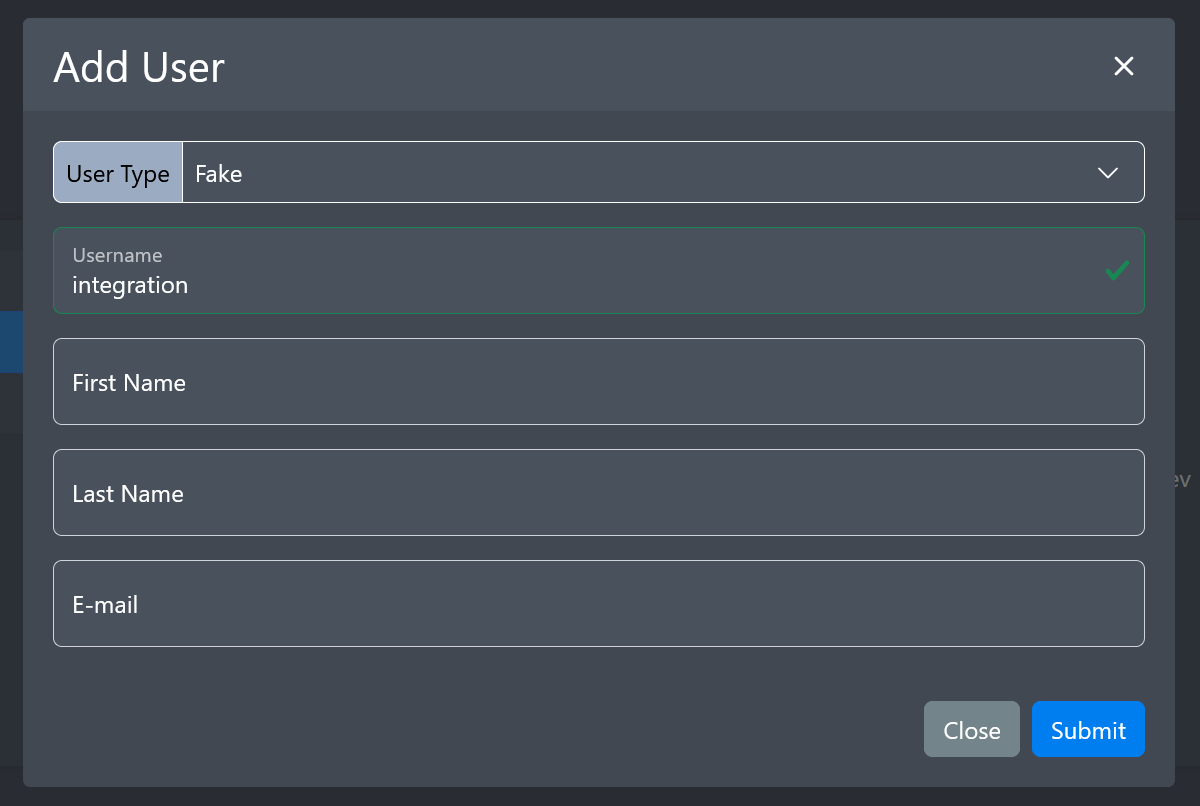

Image of the add fake user modal

'Fake' users can be created to facilitate processes. For example an 'unassigned' user can be created and the ticket workflow can be configured to assign all newly opened tickets to the 'unassigned' user by default. 'Fake' users cannot log into the system but can be otherwise treated like normal users.

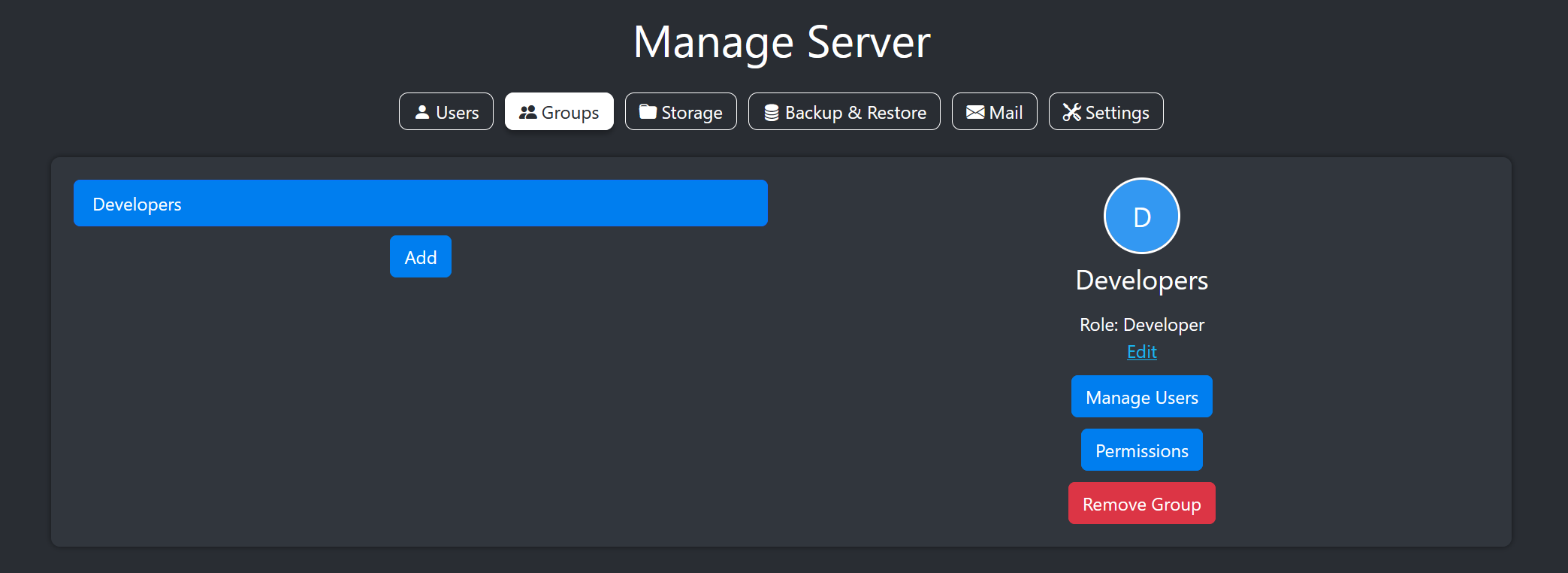

Image of the group management screen

Groups provide an easy way to manage permissions across a large number of users at once.

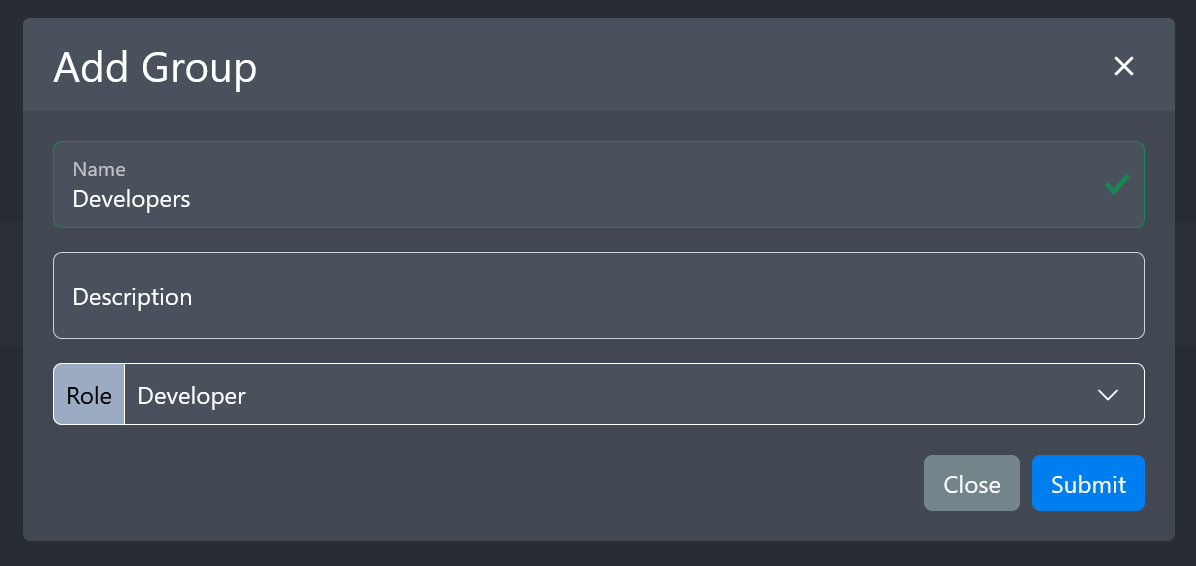

Image of the add group modal

Groups can also be given a role to indicate if the members are developers or QA. This role is used by the system to automatically assign the user as the developer or QA owner of the ticket when they are assigned to it.

User and group permissions

Creating a user will give them the ability to log into the system but until they are granted permissions they will be unable to access anything.

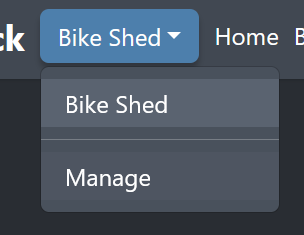

Image of the project select dropdown

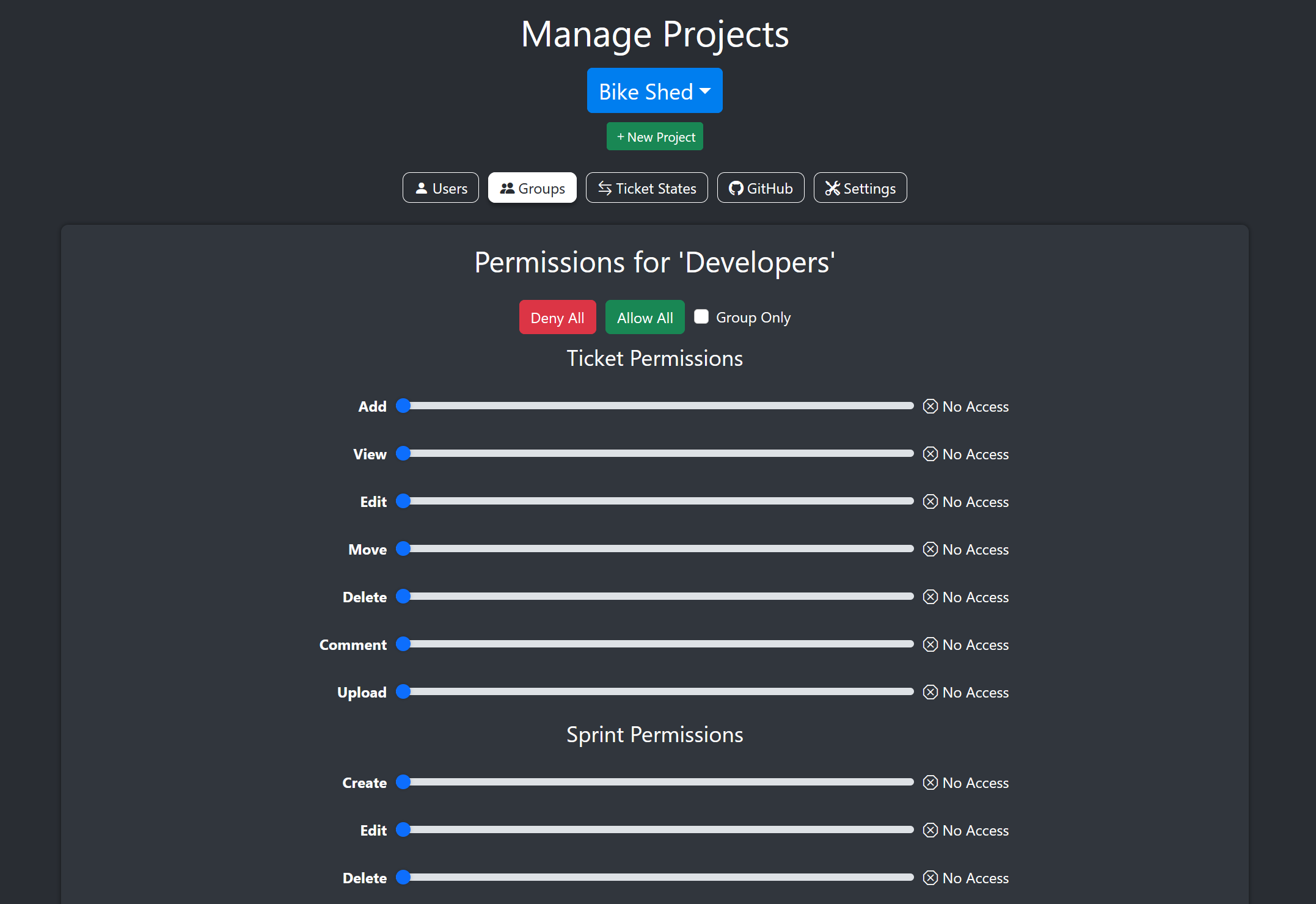

Image of the project permission management

Most access is granted on a per-project basis via the project management interface found in the project dropdown in the navigation bar. Project management is available only to the 'admin' user.

Granting permissions to a group and then adding a user to the group is the most efficient way of managing permissions in the long-term. Users can be granted individual permissions for one-off cases. The user's access is the union of the permissions granted to them directly and via any groups they are assigned to.

Storage

MergeBack stores most of its data in the PostgreSQL database. The exception to this is file attachments.

This exception is made due to the inefficiencies of storing arbitrary files in the database as well as to facilitate easier access and recovery of these files during data recovery scenarios.

As a result at least one storage volume must be added to the product to store these files, though multiple volumes may be used to organize these files or keep them on separate storage devices.

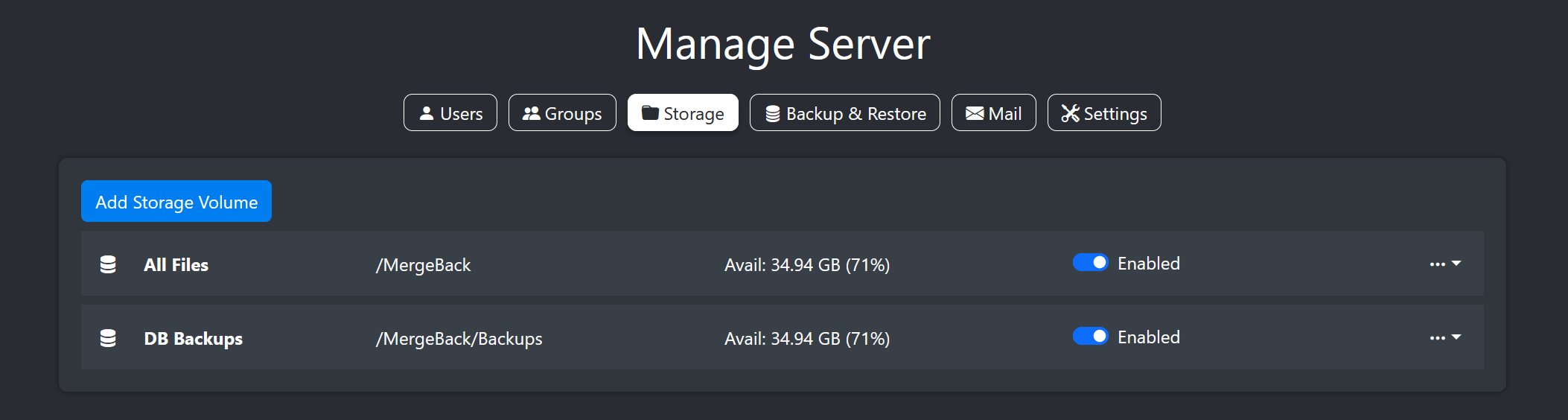

Image of the storage volume management screen

Storage volume management is performed via the system management interface as the 'admin' user.

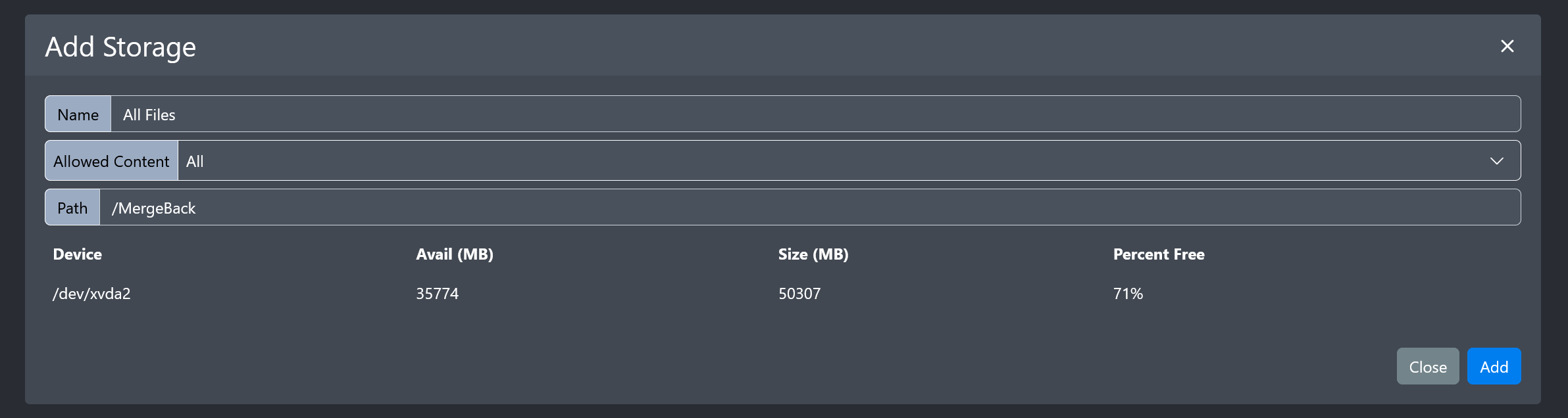

Image of the add storage volume modal

A storage volume is fundamentally a folder somewhere in the filesystem. The folder must exist on the machine before the storage volume can be created. It will also need to have the correct permissions and ownership settings so MergeBack can read and write files to it.

Storage volumes will be monitored for their disk usage and the admin user will be alerted when the remaining free space drops below recommended levels.

Backup and Replication

Disclaimer: While MergeBack is capable of using a remote PostgreSQL database the built in database backup and restore functionality works only with locally installed databases.

Database Backups

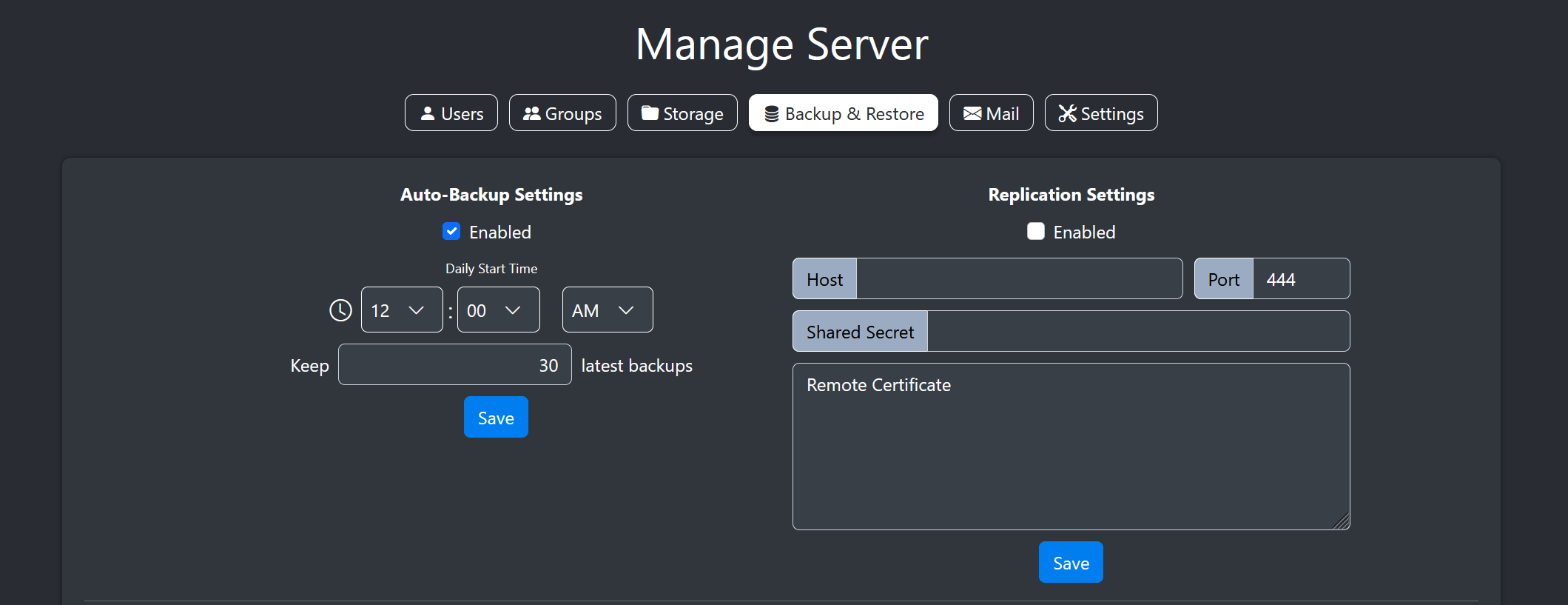

Image of database backup and replication settings

MergeBack provides built in automatic database backups, allowing the administrator to choose when the backup should happen and how many backups should be retained.

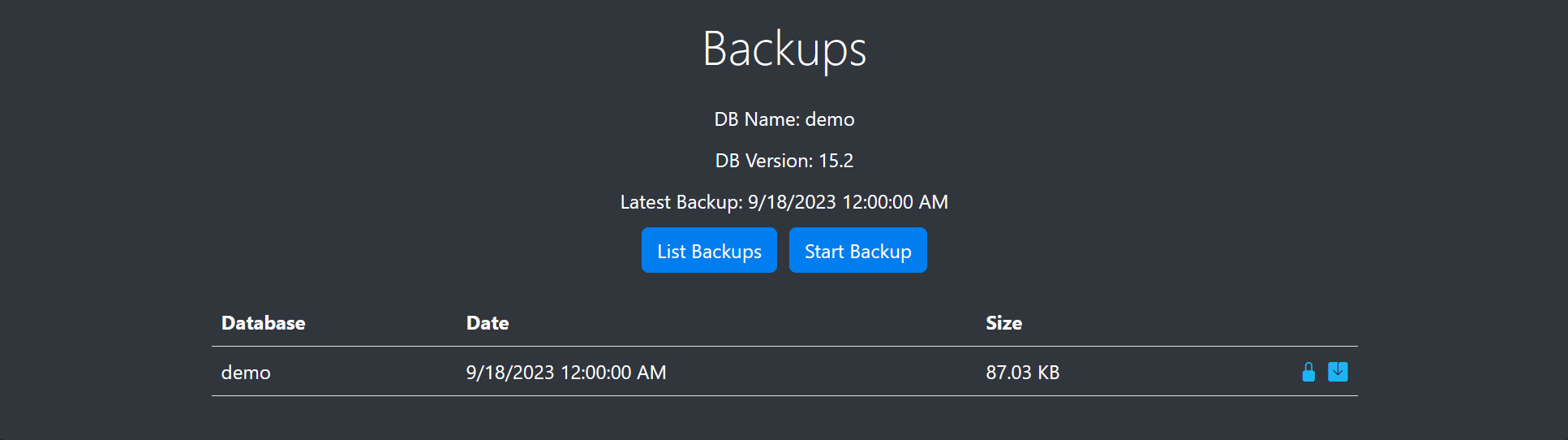

Image of list of database backups

The administrator also has the ability to manually trigger a backup as well as lock backups to prevent them from being deleted

Clicking the square icon to the right of the backup will allow the administrator to restore from that backup:

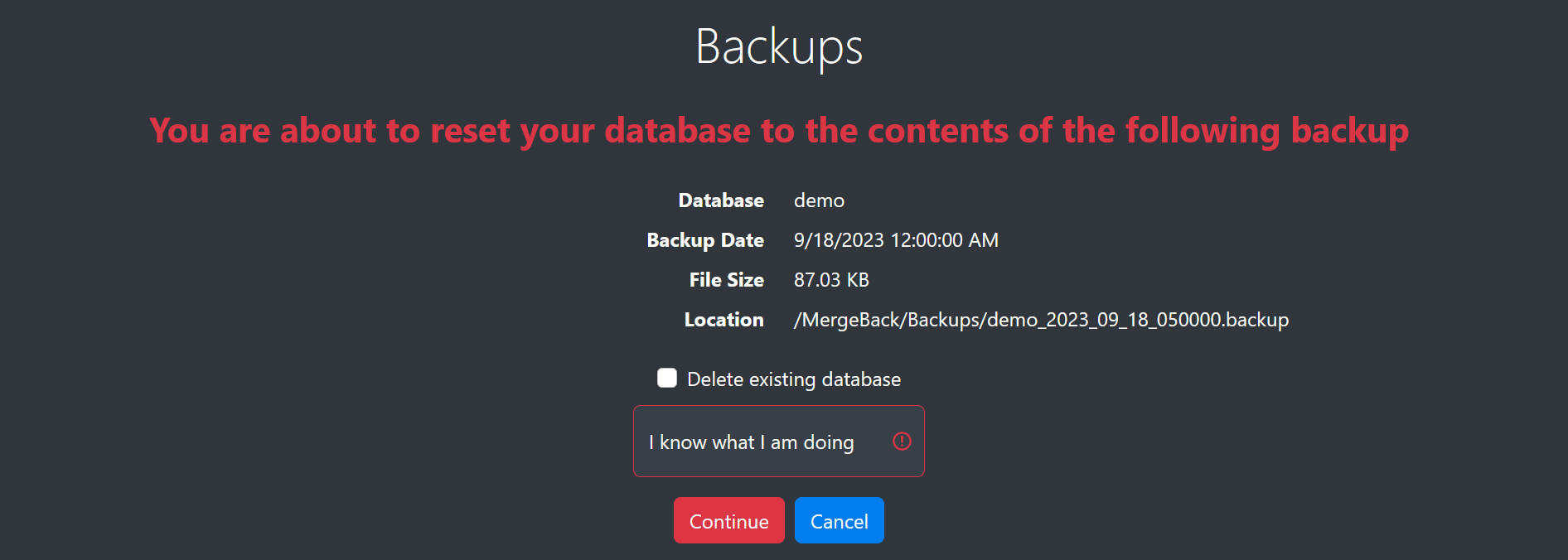

Image of restoring from a database backup

Please note that if the 'Delete existing database' is not checked the old database will be renamed and remain on the PostgreSQL server until manually cleaned up. If space is not a concern then leaving this unchecked is best practice should something go wrong during the restore.

Replication

Users seeking a more comprehensive backup and restore solution can take this one step further by enabling the replication feature. This feature allows you to have a hot-spare instance of the product running on a secondary machine. It also covers backing up files from storage volumes (including database backups).

This feature requires a separate install of the product on another machine configured in 'Replication Mode'. In this mode it will listen for replication requests on the specified hostname and port. Enabling this mode is done through the initial 'Product Setup' screen:

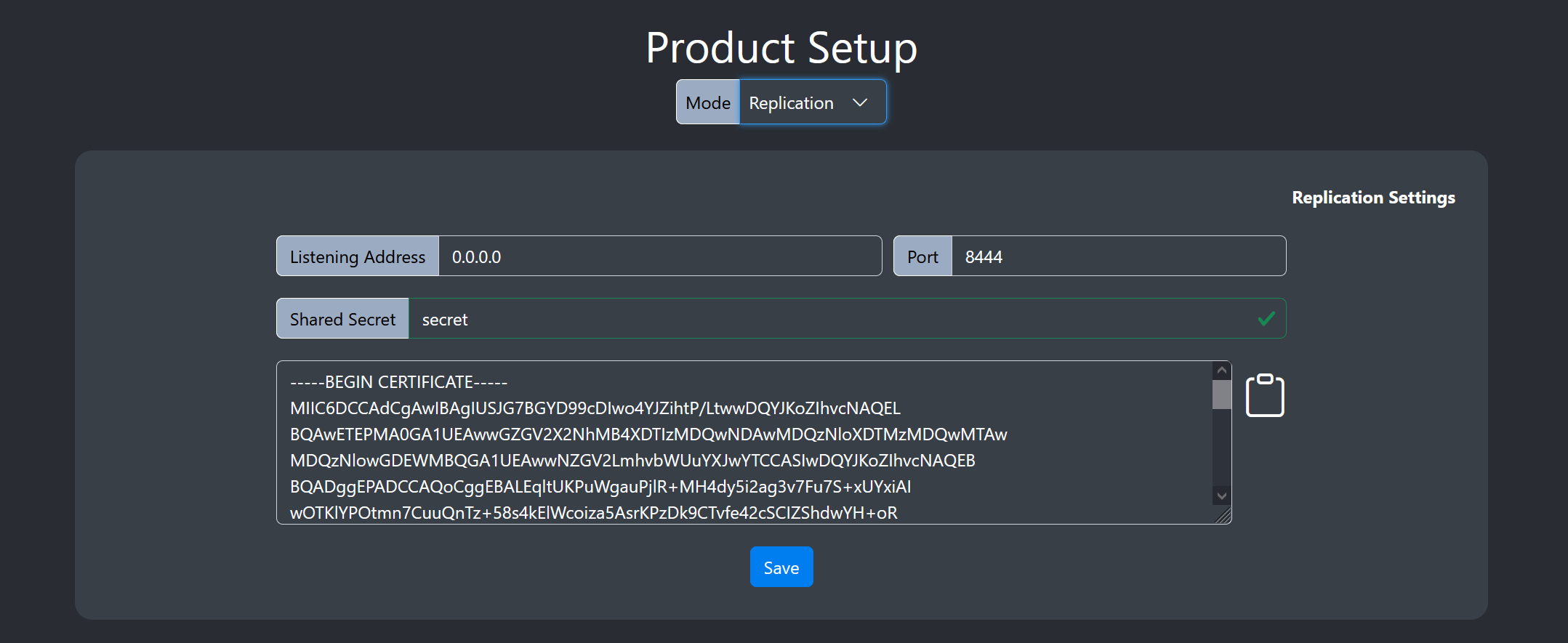

Image of configuring replication mode

Once your replication server is ready you can configure your production server to send backup data to it every time a backup is made:

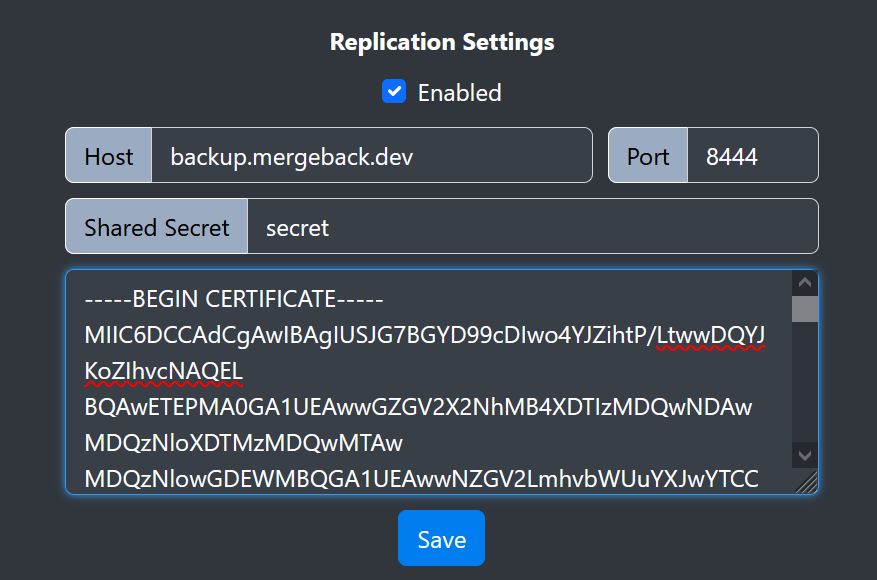

Image of configuring replication on the client side

When enabled the production server will connect to the replication server and upload database backups and files to the replication server. It will then trigger a restore of the database on the replication server to the latest backup

Please note that since the replication server is listening on a non-standard port that it is more vulnerable to having connectivity issues caused by routers and firewalls.

The replication server runs in read-only unlicensed mode. Promoting it to a normal install can be done by changing the selected mode in the drop-down at the top of the product setup screen.

Notifications

MergeBack includes a built-in notification system to alert users and administrators to ticket updates or runtime errors. The indicator for them can be found in the right side of the top navigation bar next to the user's profile.

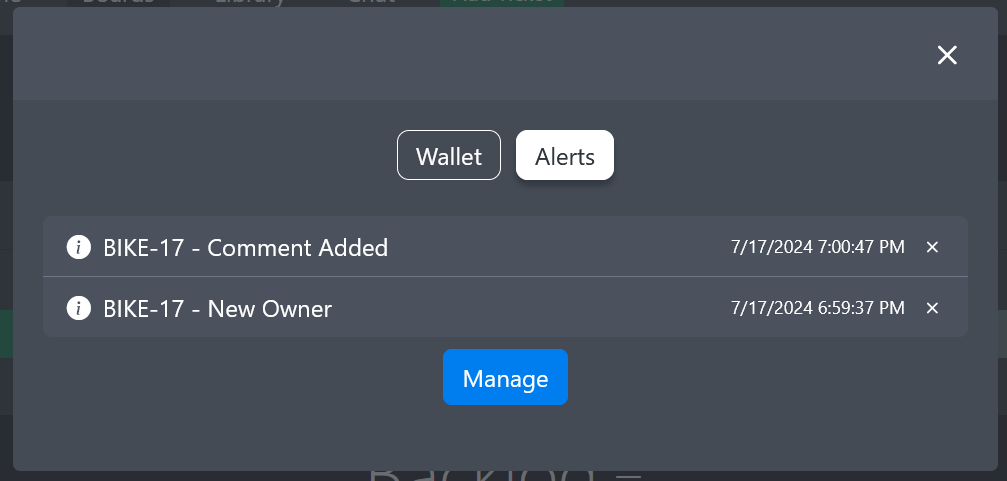

Image of notifications in the navigation bar

In the case of a large number of notifications or situations where the user wants to view acknowledged notifications they can click the 'Manage' button in the notification screen to navigate to a full page view of all notifications. The checkbox at the top will make acknowledged notifications visible, though they will get cleaned up automatically by the system after being acknowledged for 24 hours.

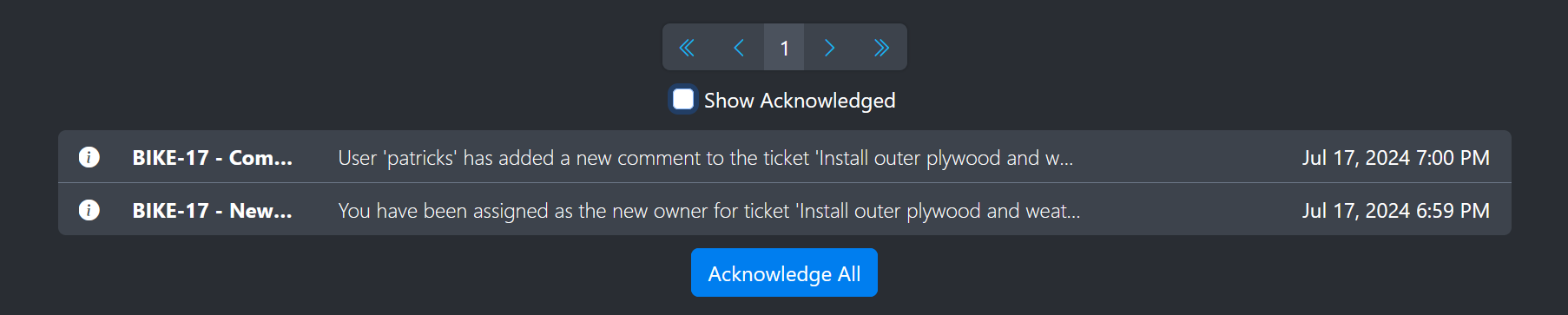

Image of the notification management screen

Users can also configure a forwarder that is capable of sending notification details as a HTTP request to another service. These settings can be found in the user's profile. Please note that notifications may contain sensistive information such as ticket titles and should only be sent to trusted destinations.

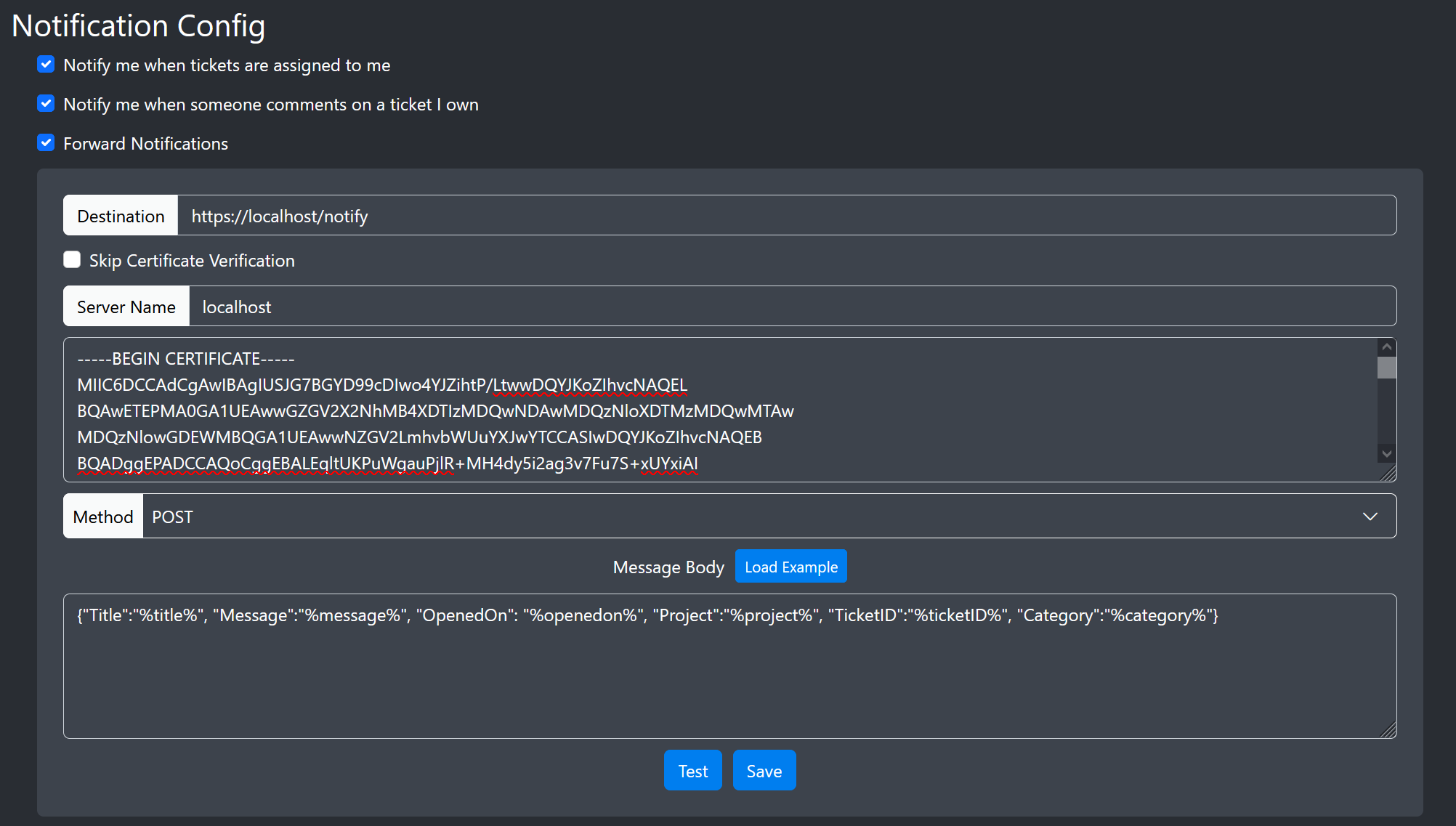

Image of the notification forwarding configuration

HTTP or HTTPS is supported. The server certificate is not required unless it is signed by a non-official certificate authority. Skipping certificate verification can be used but is not recommended if there are concerns about sensitive data. The 'Load Example' button can be used to populate a basic JSON request body that will auto-populate with the details of the notification.

E-Mail

MergeBack includes support for sending mail via SMTP in order deliver user invites, ticket updates or notifications to the system administrator

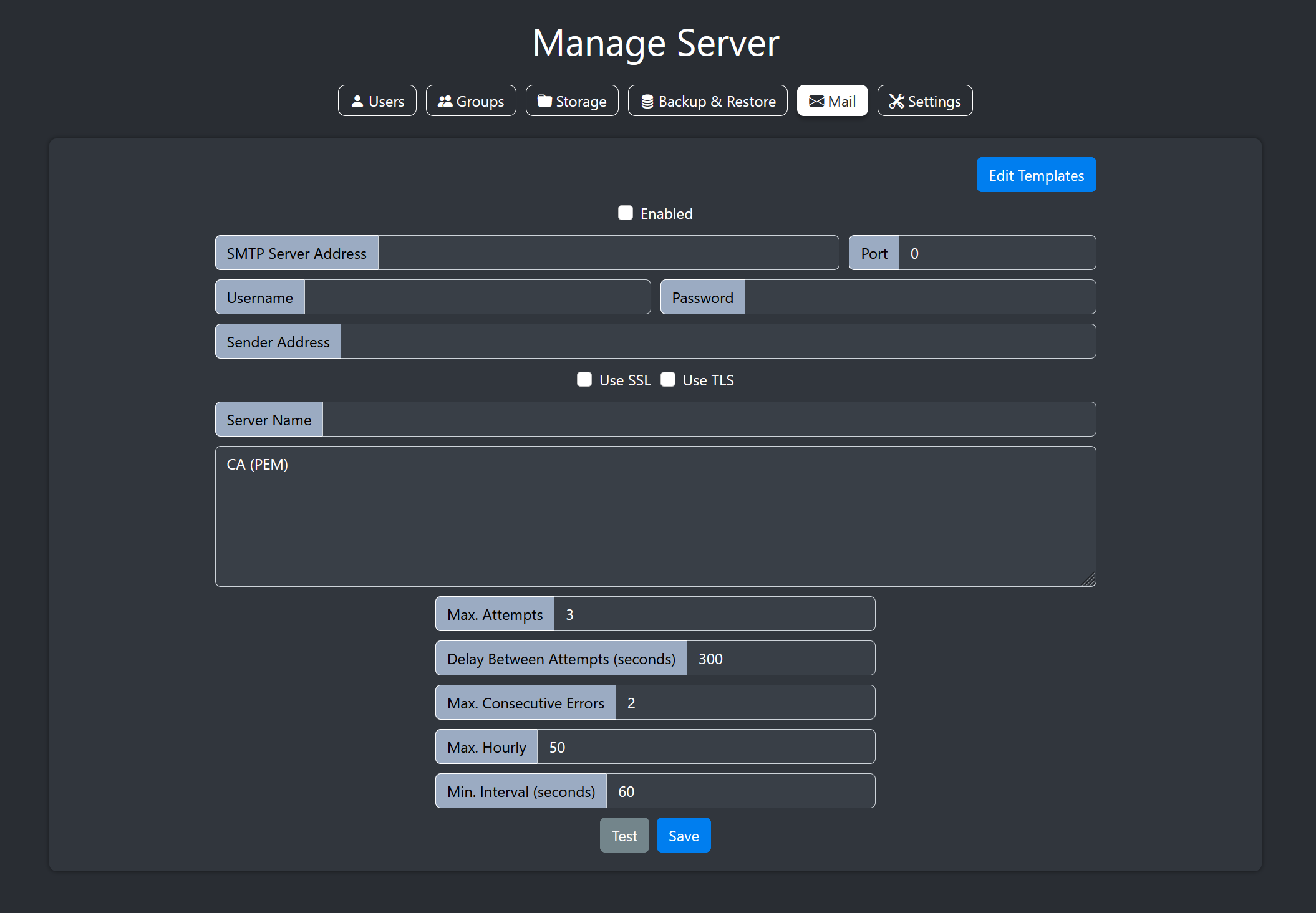

Image of configuring SMTP settings
  • Sender Address: The address that will appear in the 'From' section of the email. Ex: "noreply@mergeback.dev"
  • Server Name: Used for validating the certificate of the SMTP server. This is typically the same as the SMTP Server Address
  • CA (PEM): PEM encoded copy of the SMTP server's public certificate for validation.

At this point SMTP settings are considered an advanced feature intended for intranets hosting their own SMTP server. This is due largely to the complexity of setting it up as well as the difficulty of sending mail reliably without getting flagged as spam.

Features

Backlog

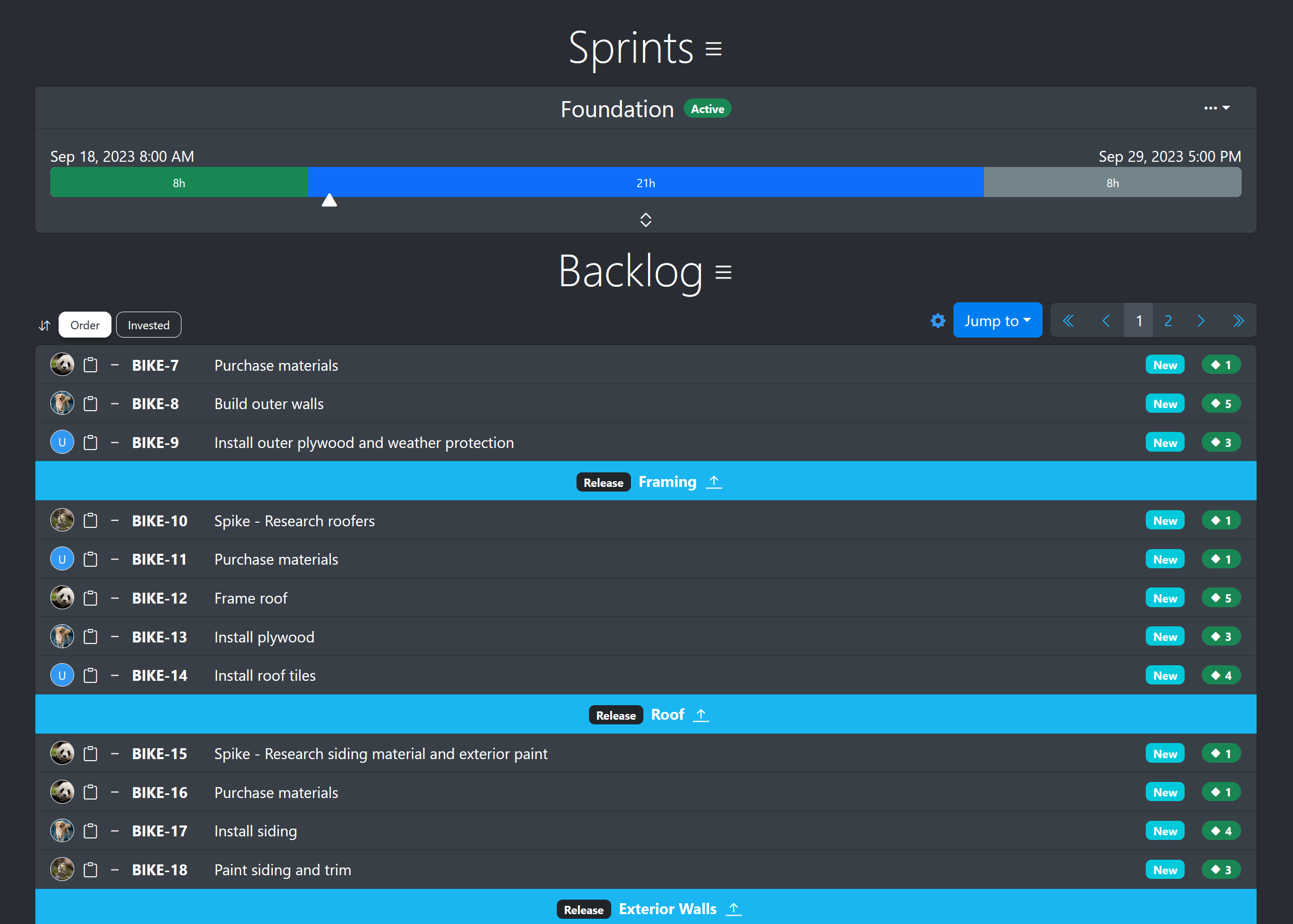

Image of backlog

The product backlog is where users can view, organize and manage tickets and sprints. It includes the following features:

  • Drag and drop tickets to change their order
  • View ticket states
  • View ticket estimates (story points or hours)
  • Release and refinement waterlines

Waterlines

Waterlines appear in the backlog like other tickets but primarily serve as separators to group tickets into meaningful blocks.

By default all projects will have a 'Refinement' waterline used to indicate the separation between tickets that have been refined and those that aren't. This allows maintainers to keep track of refinement progress and better understand the state of the backlog at a glance.

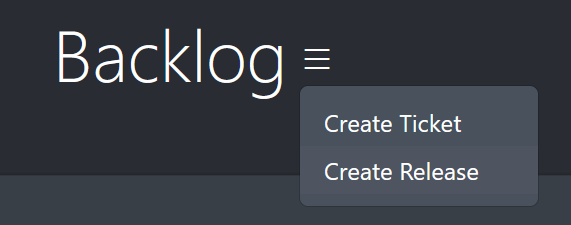

Image of creating a release

In addition to this maintainers can also create release waterlines to separate tickets into a specific release. Release waterlines create a visual way of tracking a release's progress as it approaches the top of the backlog. It also automates the process of adding tickets to a release as simply dragging the ticket above the release waterline will have the side-effect of marking it as part of that release.

Library

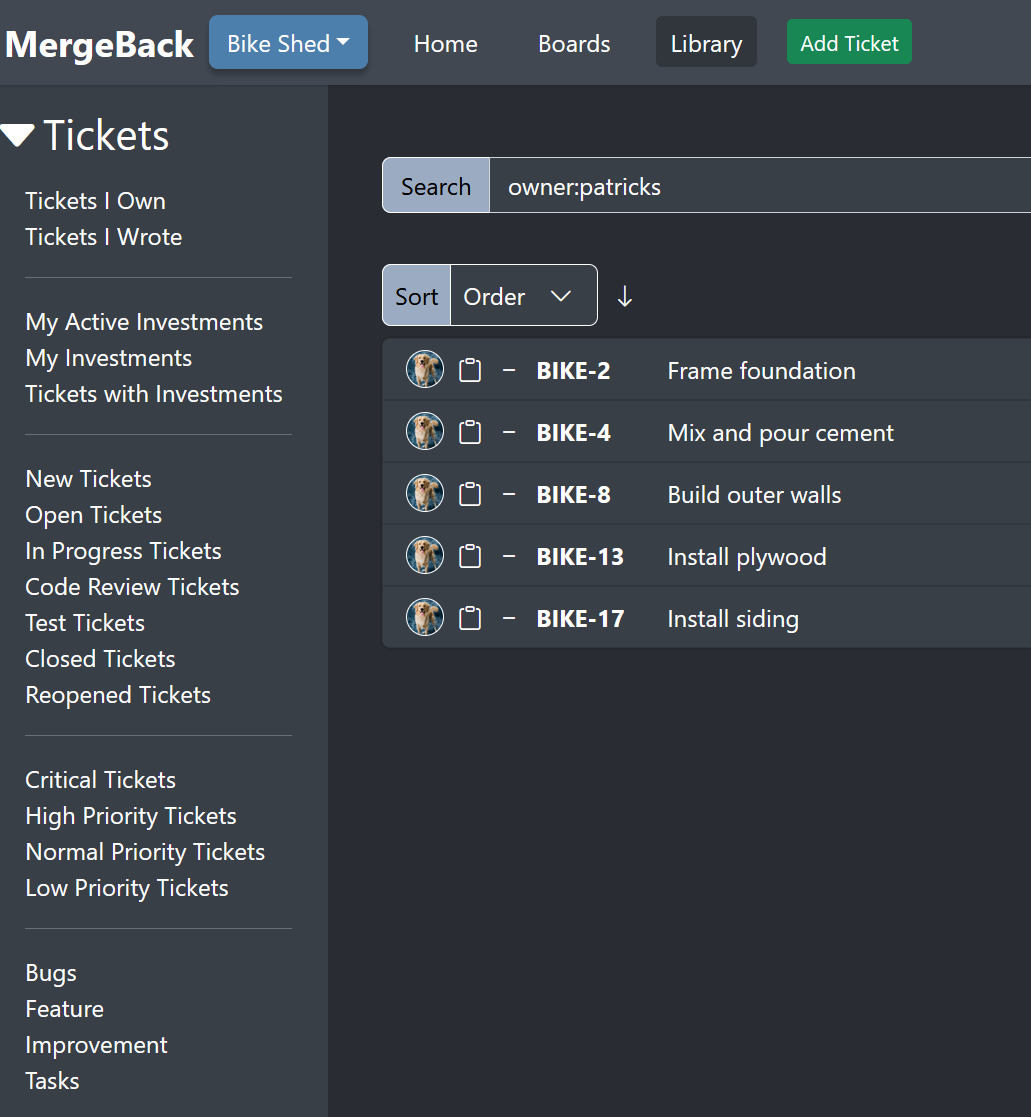

Image of library

Use predefined or custom queries to search through your library of tickets. Sort tickets by order, last updated and investment amounts.

Access the full list of knowledgebase tags and view knowledge base data

View the list of previous sprints and releases for the project.

Sprints

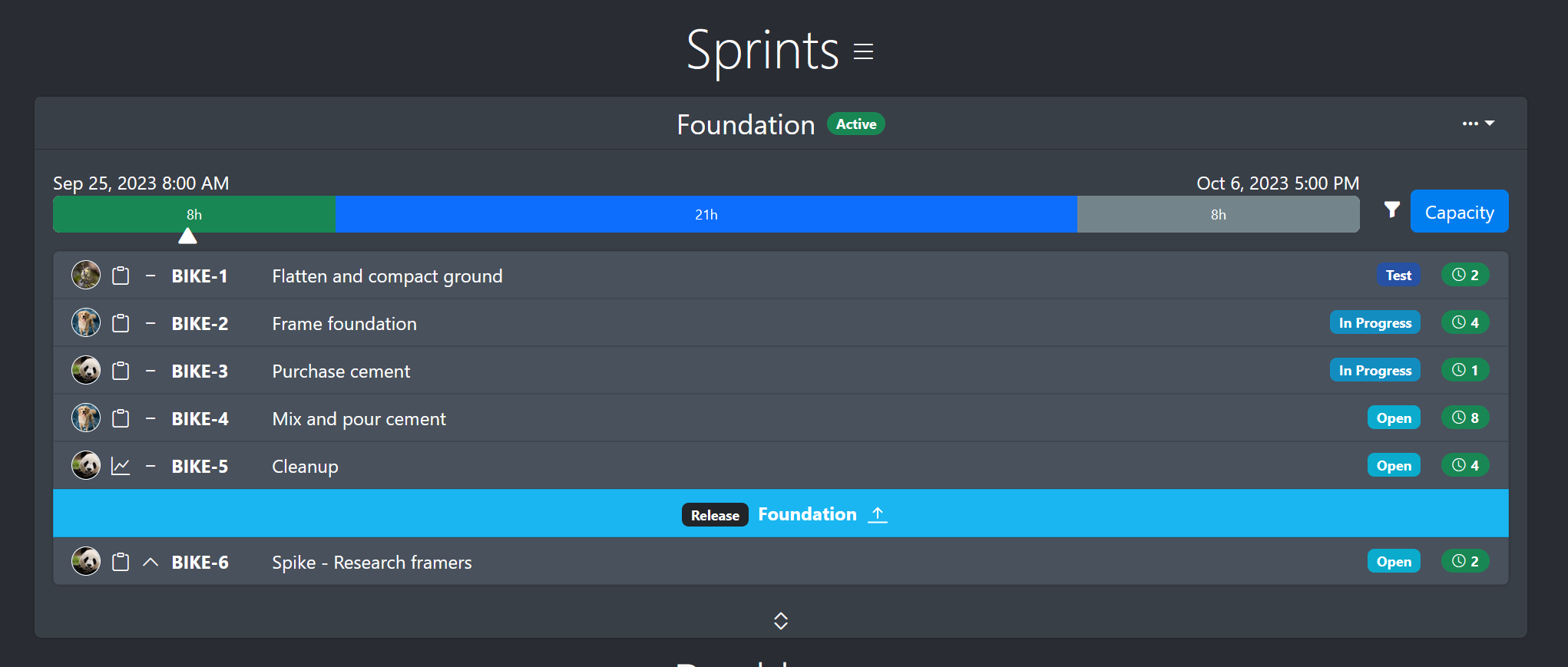

Image of sprint

The sprint feature allows you to set a discrete window of time and a list of tickets to complete in that time-frame. Tickets and releases can be dragged between the sprint and the backlog for simple management.

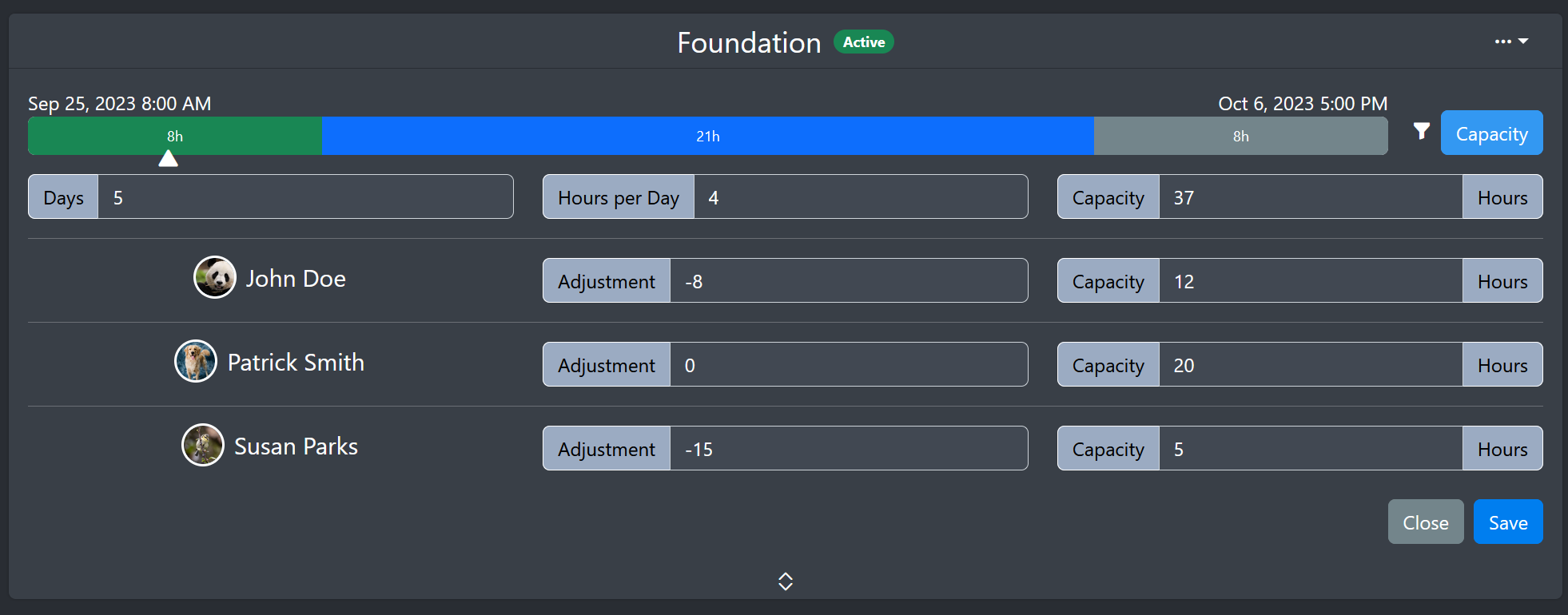

Image of capacity planning

Built-in capacity planning let's you quickly estimate total capacity for the entire sprint and each member with individual adjustments for excess or reduce capacity scenarios.

The sprint progress bar provides a simple way of viewing sprint progress by indicating hours completed, hours remaining and excess capacity. The arrow mark on the progress bar is a basic estimate of where progress should be based on the current timestamp relative to the start and the end of the sprints.

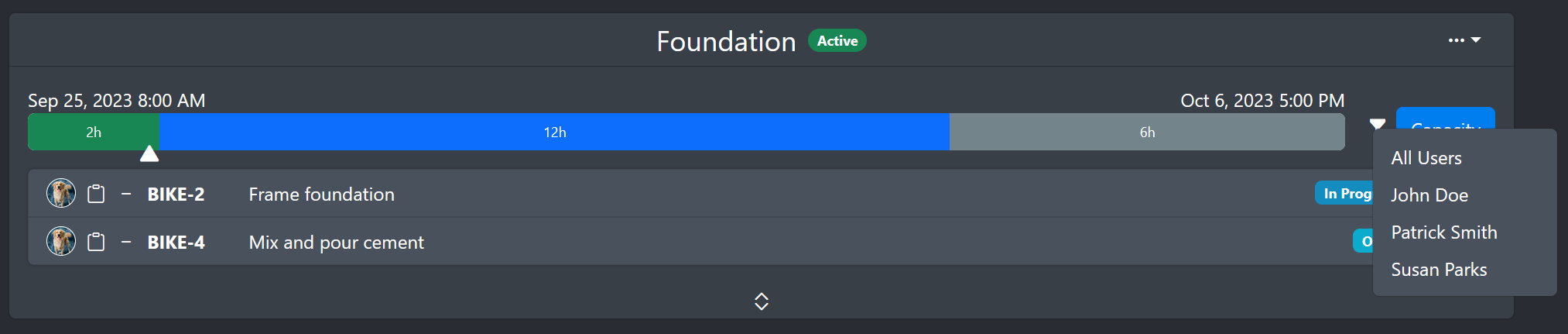

Image of a sprint filtered to one user

Click the filter icon next to the progress bar to target a specific team member to see their invidiual progress and capacity

Kanban

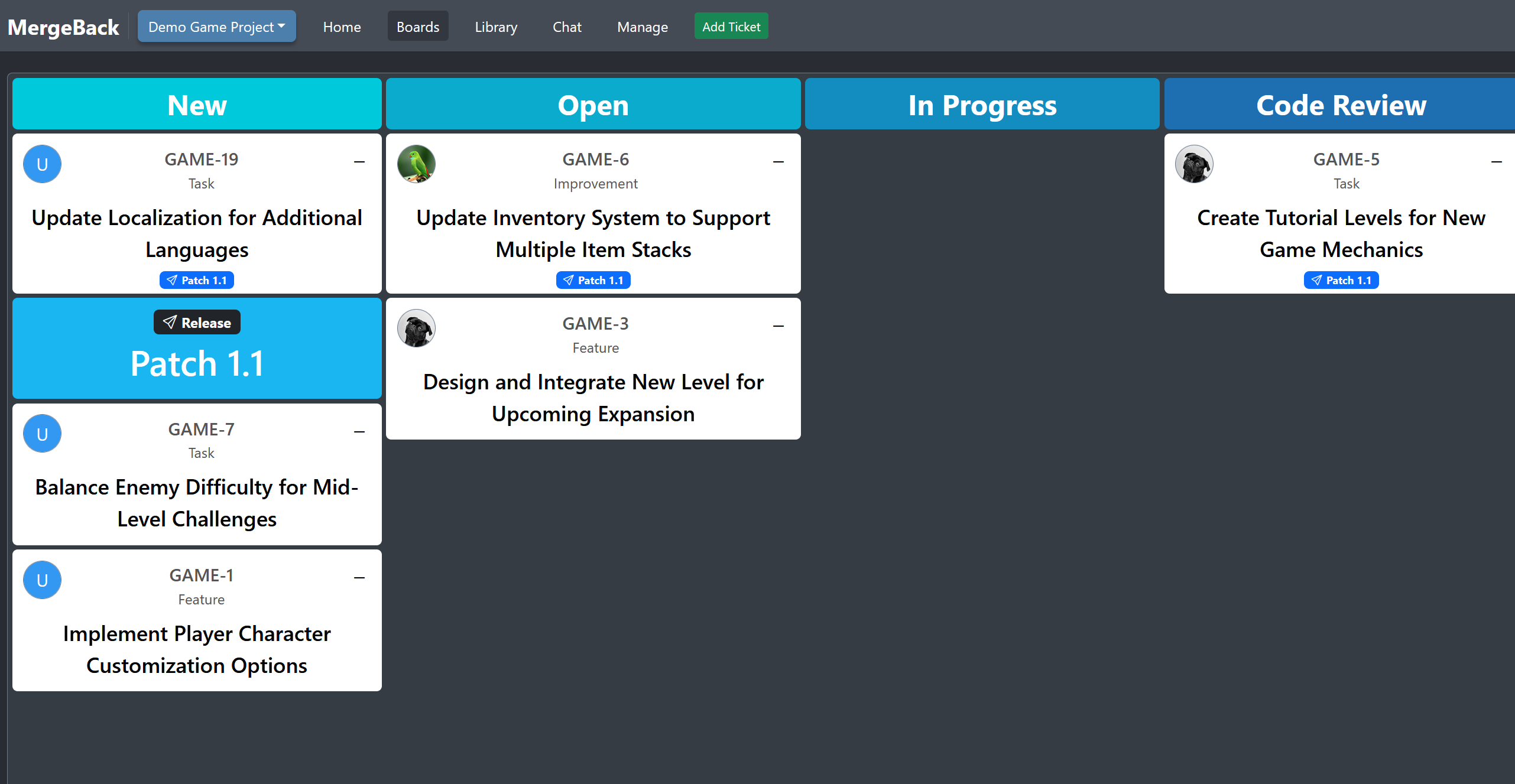

Image of a project Kanban board

Instead of sprints some teams may adopt the use of a Kanban board to track open work items and their progress. This is often better suited for situations where work does not follow a rigid release schedule such as continuous release workflows.

Under this workflow a manager or stakeholder can pull in tickets from the backlog for team members to pick up and progress across the board as they become available to work.

Columns allow for sorting tickets based on priority and the number of columns can be customized by configuring the ticket states in the project's settings.

Projects can be swapped between Kanban and sprint mode as needed in the project settings screen but both are not supported at the same time.

Ticket States

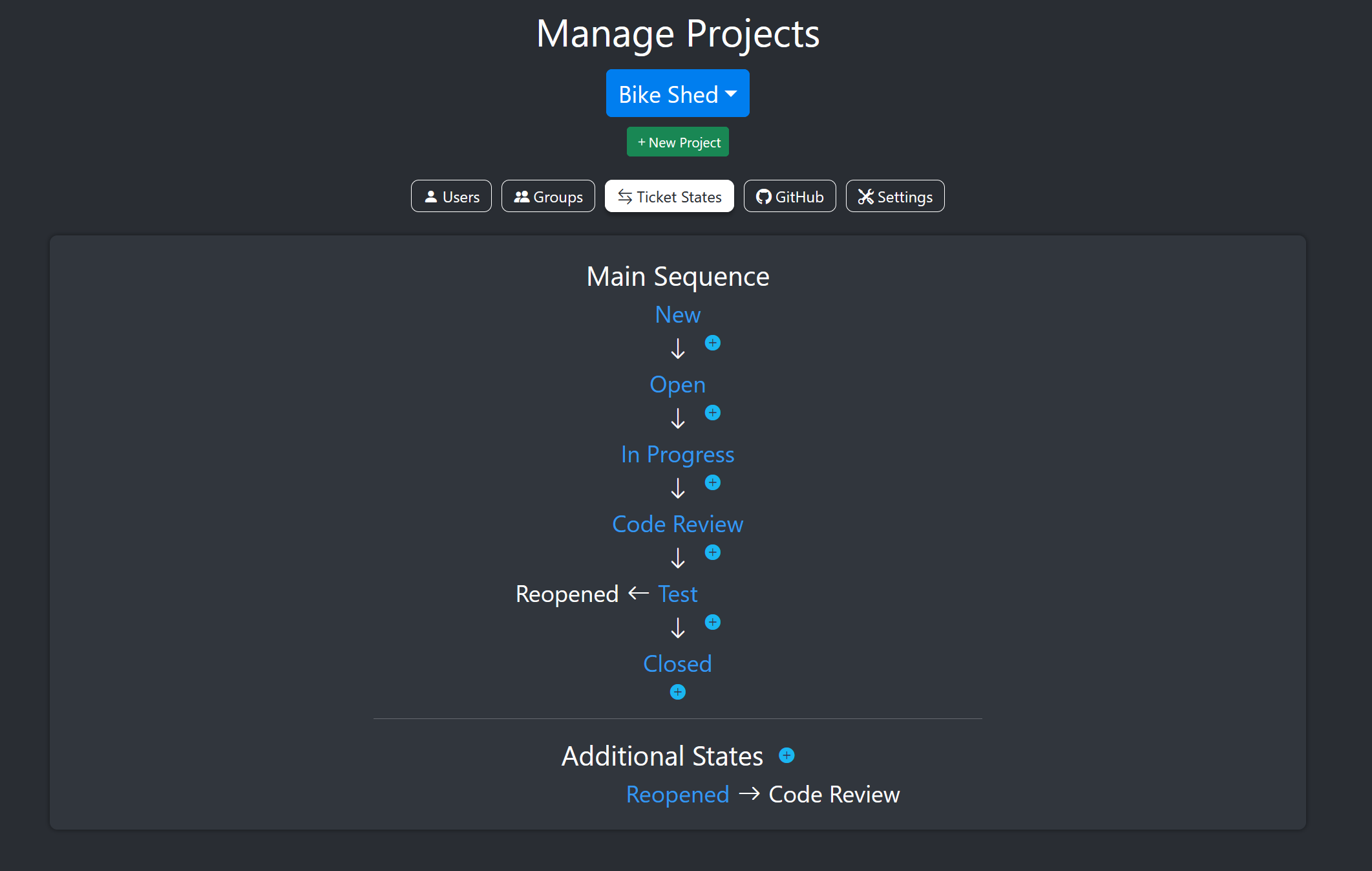

Image of ticket state management

Ticket state management allows you to define the flow of tickets, how they are assigned to team members and integrate with other subsystems.

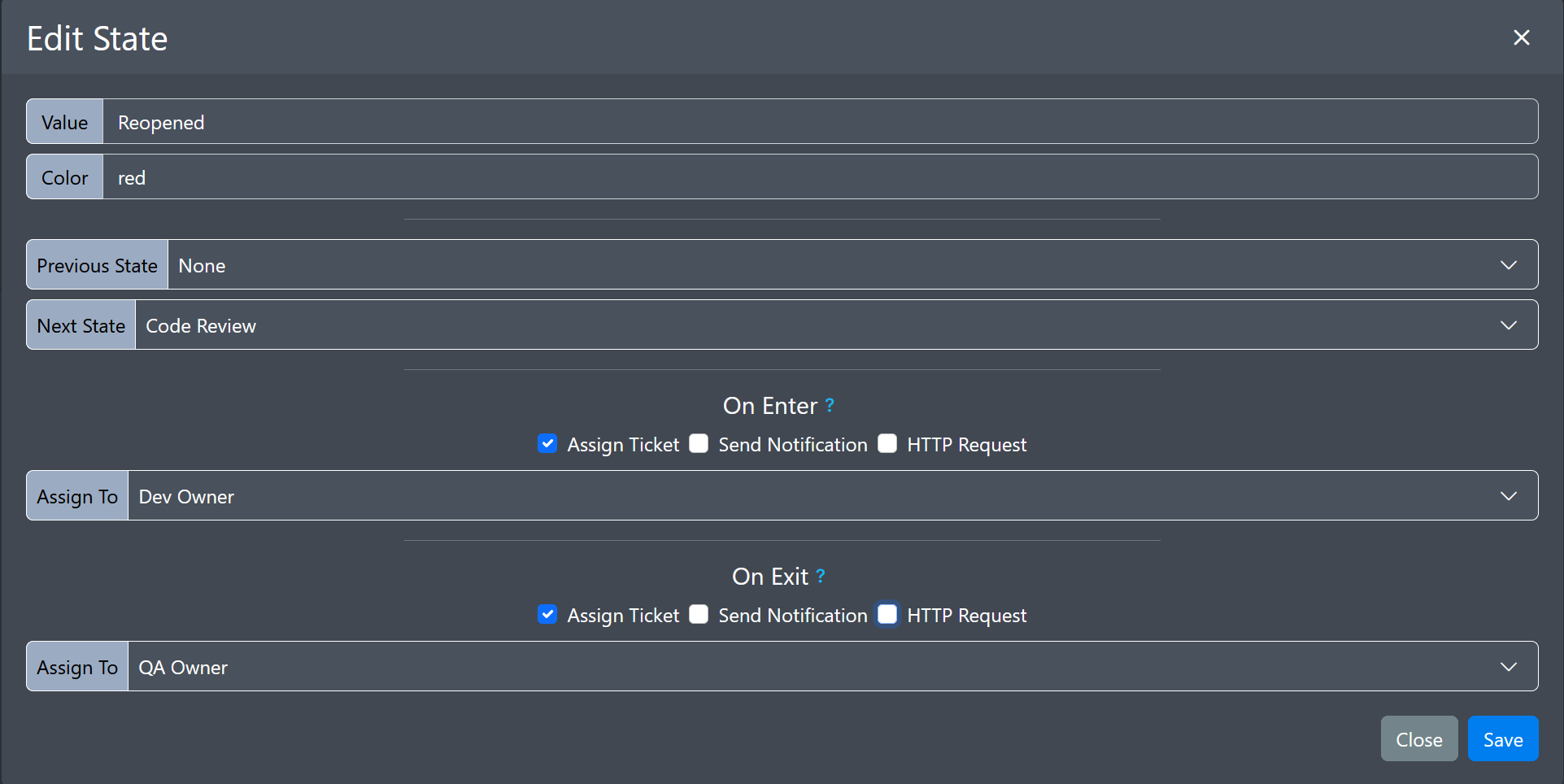

Image of ticket state configuration

Configure ticket state color, what states to transition to/from and actions to take when entering or leaving the state.

Examples of actions include:

  • Assign the ticket to a specific person. Ex: Assign new tickets to the fake 'unassigned' user.
  • Assign the ticket to the Dev or QA owner. Ex: Tickets that are 'reopened' should go back to the original developer.
  • Send a notification about the ticket.
  • Send a custom HTTP request to a remote service. Ex: Trigger a build pipeline step.

Investing

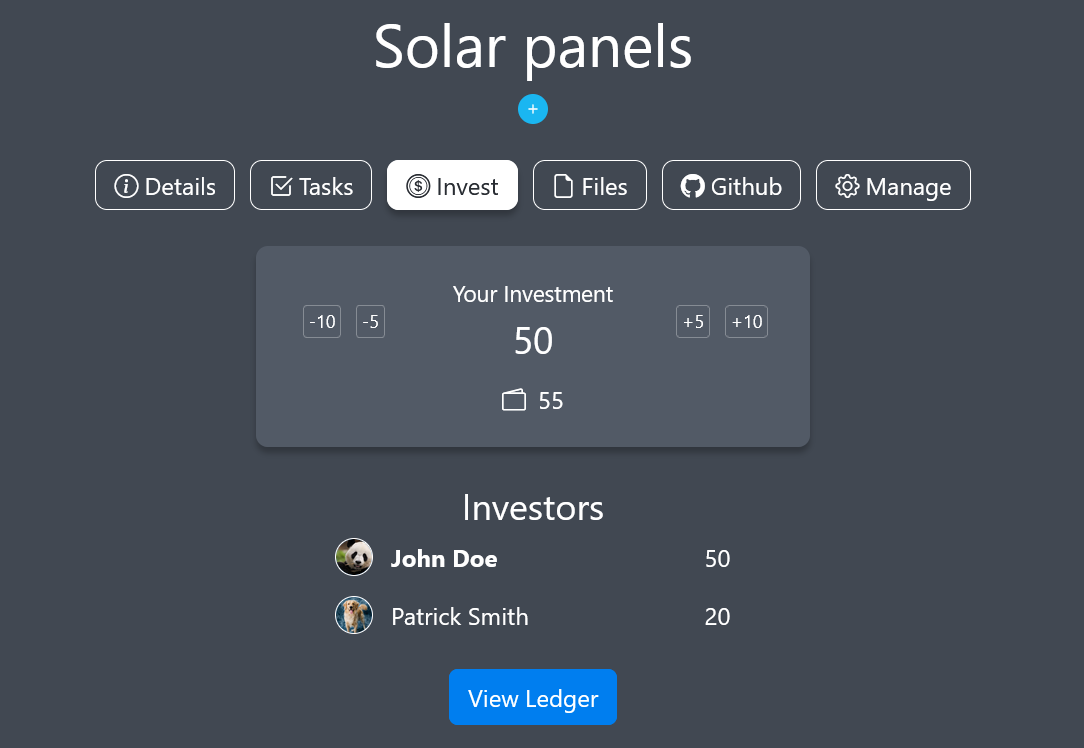

Image of ticket investment details

Use the invest feature to help gain insights into ticket importance and better prioritize your backlog.

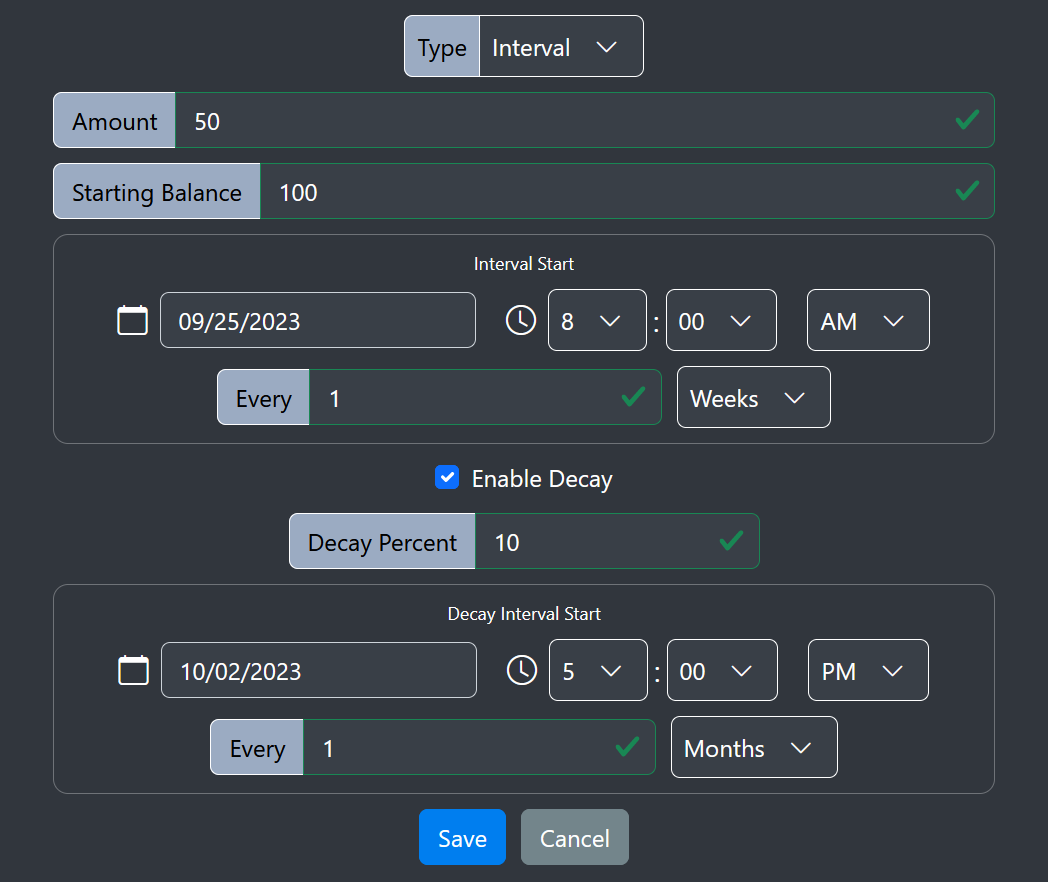

Image of allowance settings

Award users or groups investment currency manually or with allowances that will automatically distribute amounts at set intervals.

As team members and stakeholders work on the project they can distribute their investment credits according to their own desires.

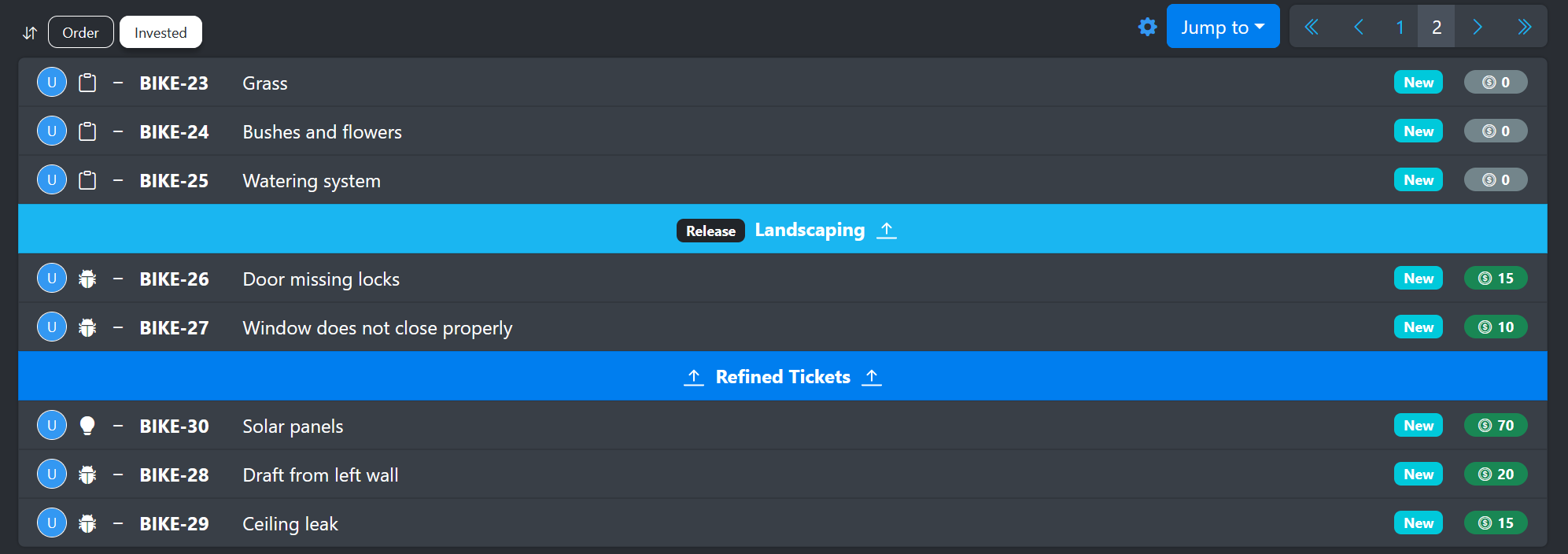

Image of backlog sorted by invested amount

Use the investment view of the backlog to see investment amount's and sort from highest investment to lowest.

Example use cases include:

  • Team members invest a small amount of points each time a bug is encountered to measure the severity and rate of occurrence.
  • A product manager with a large allowance can distribute it quarterly to set the overriding priorities for that quarter.
  • A developer can invest in a ticket to express a desire to work on it.

Knowledgebase

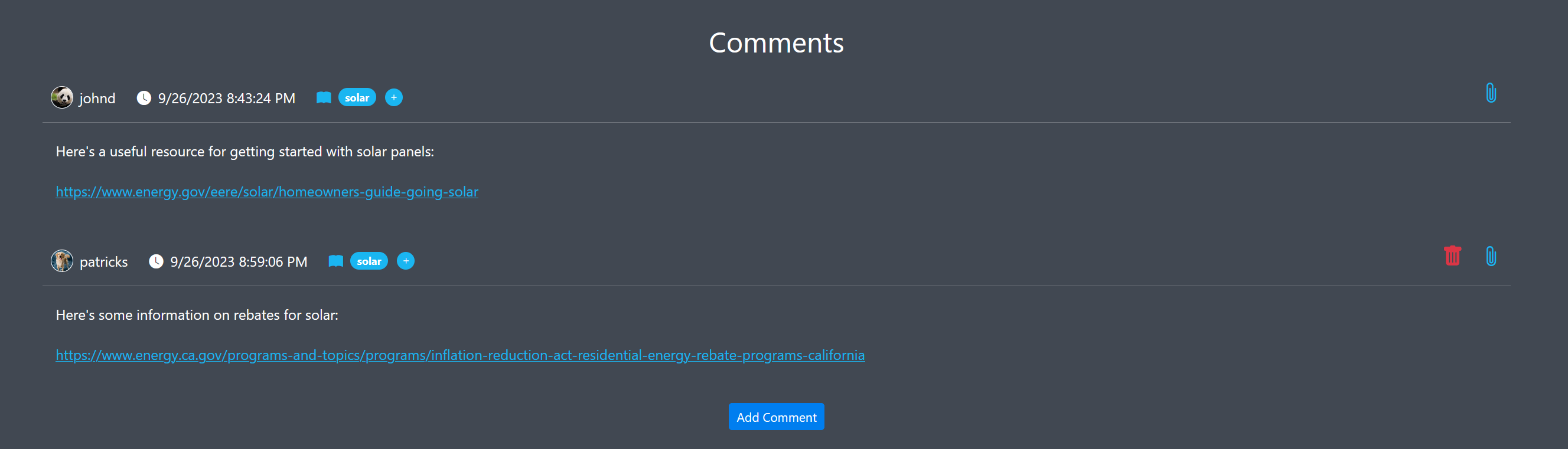

Image of comments with KB tags

Tag ticket descriptions and comments to automatically add them to your product knowledgebase. Tickets containing KB information are protected from accidental deletion.

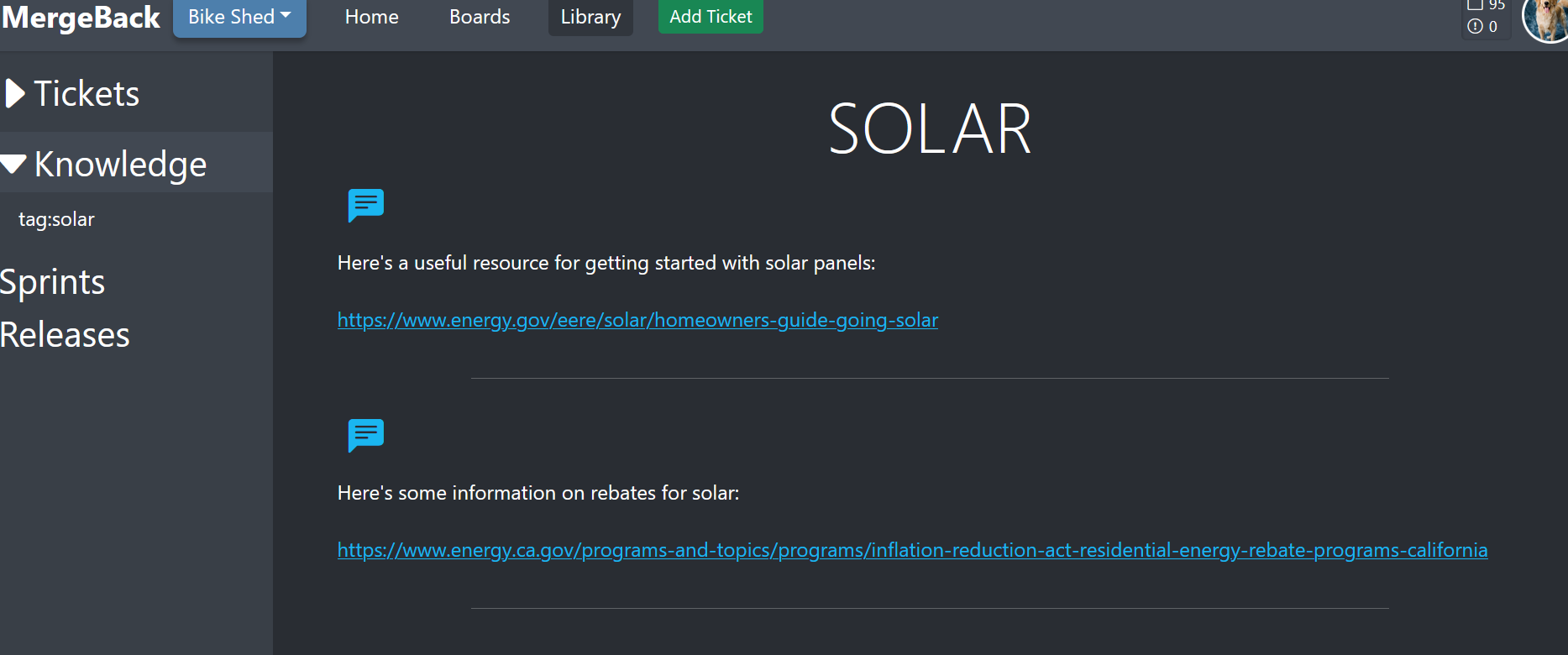

Image of comments with KB tags

View all related information on a KB topic quickly via the product library.

To-Do Lists

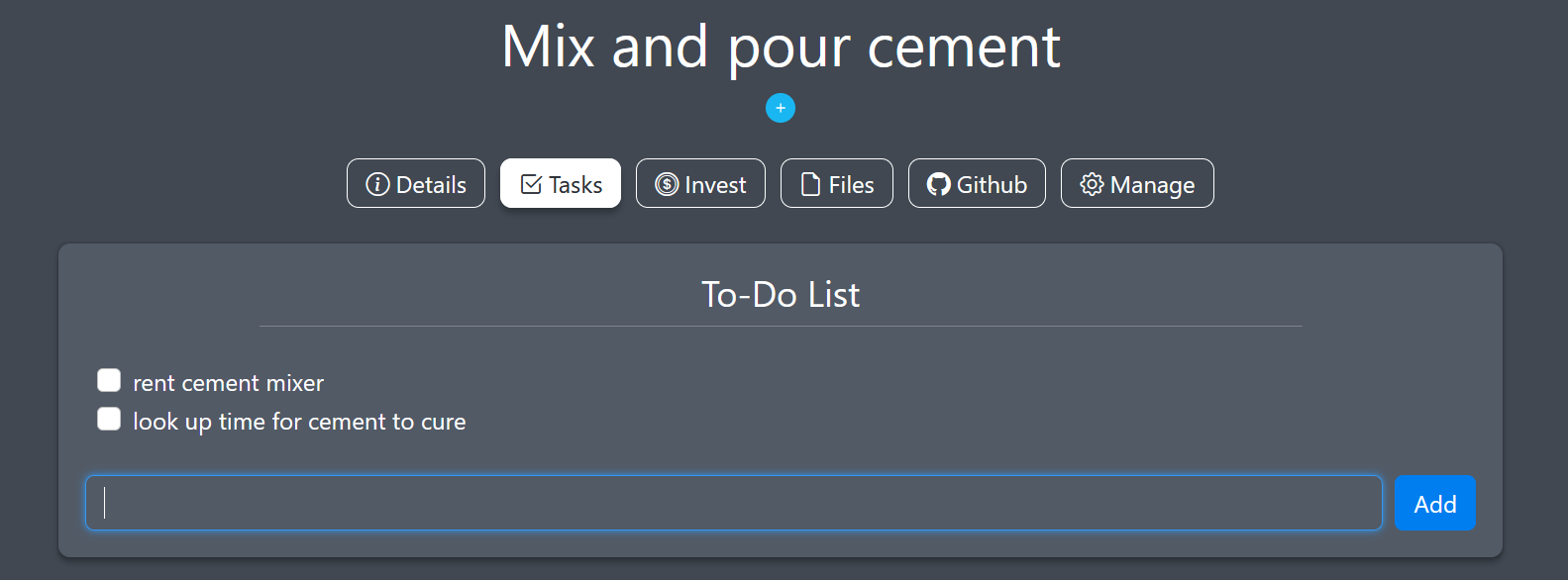

Image of ticket todo list

Add to-do items to tickets to track short-term goals and tasks. To-do items are private and viewable by the current user.

Track to-do list items on the user's home page to improve visibility.

Convenient links allow the user to quickly open the related ticket for each to-do list item.

Active Tickets

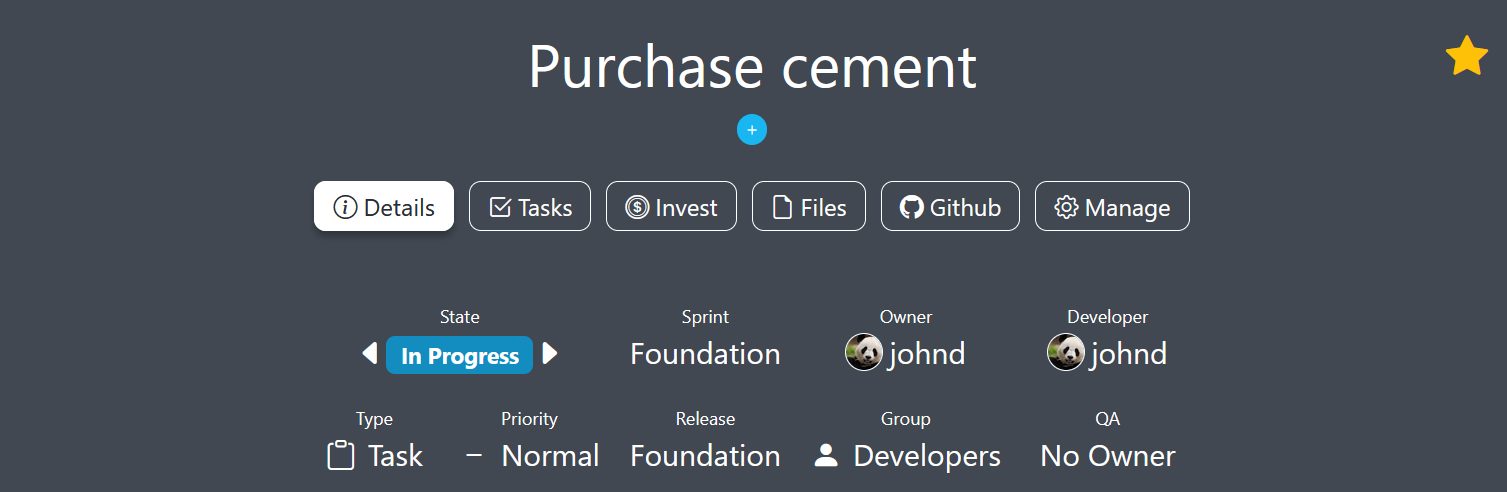

Image of an active ticket

Mark a ticket as the currently active ticket to add it to the user's home page.

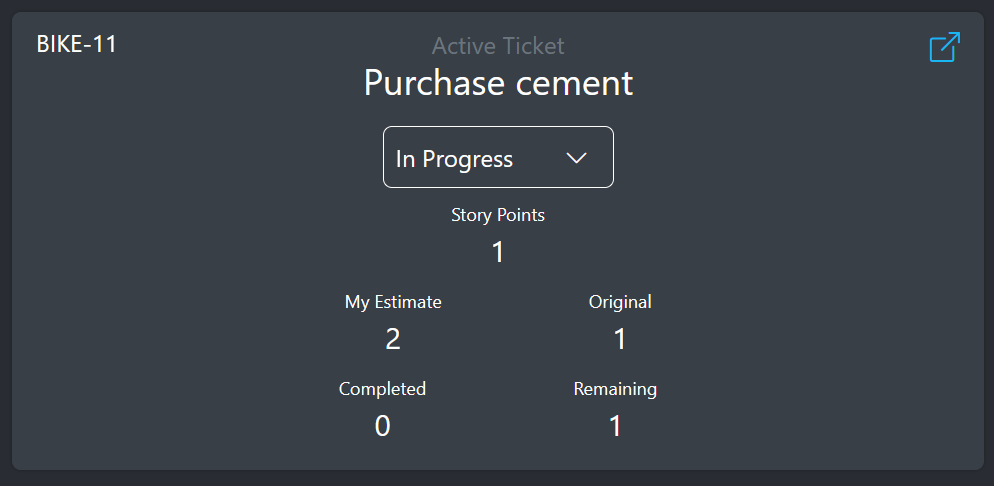

Image of an active ticket on user's home screen

Quickly manage the ticket from the home screen to simplify common tasks like updating estimates or ticket status.

Recent Tickets

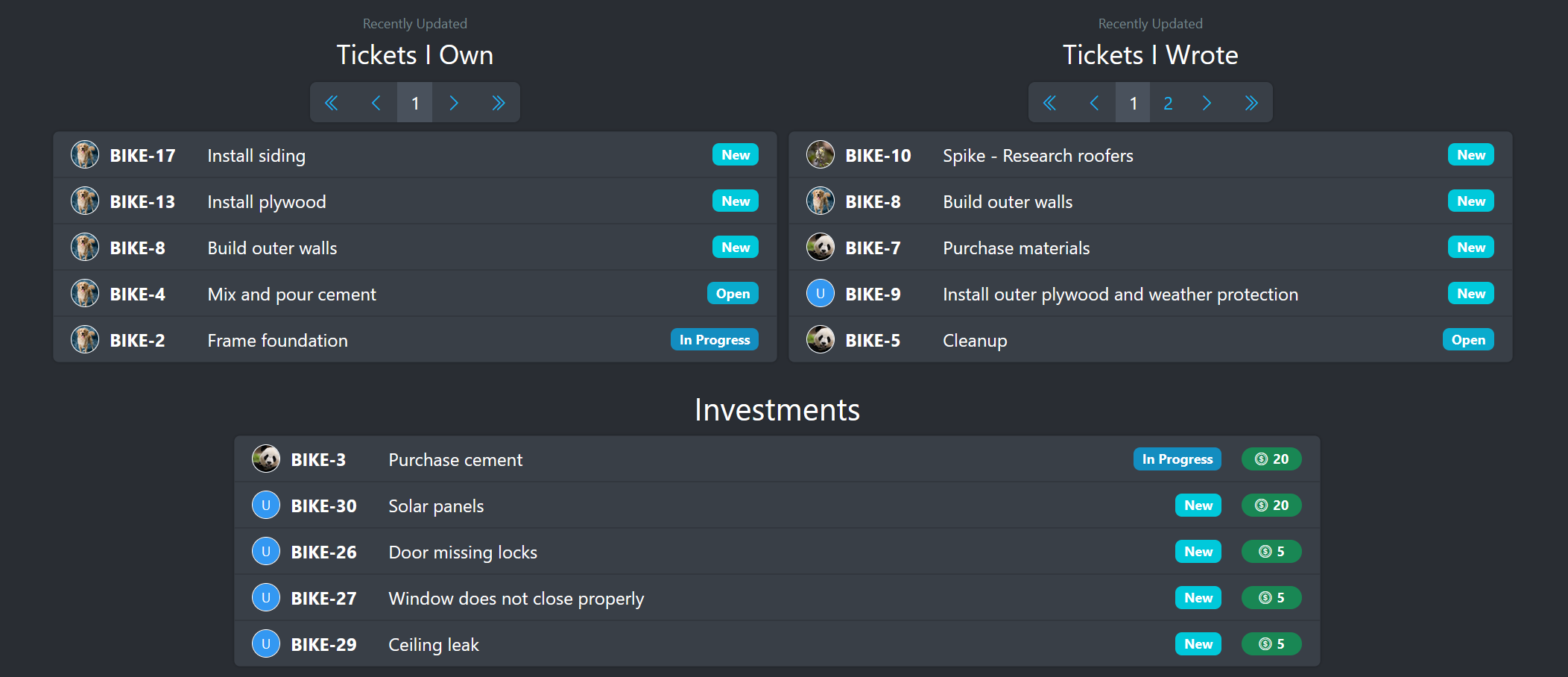

Image of recent tickets

Automatically track recent tickets that the user has created or own to quickly get back to where they left off.

View the list of the user's top investments based off how much they have personally invested in them.

Useful Information

Product Installation Directory

/opt/mergeback

Stopping/Starting the Service

# Stop
sudo systemctl stop mergeback
# Start
sudo systemctl start mergeback
# Restart
sudo systemctl restart mergeback

Uninstalling

sudo apt remove mergeback

Note: Certificates, logs and other generated files will persist.

Converting Certificate Files

# DER to PEM
openssl x509 -inform PEM -in cert.pem -outform DER -out cert.der
# PEM to DER
openssl x509 -inform DER -in cert.der -outform PEM -out cert.pem

Library Queries

The provided list of built-in queries on the Library sidebar will autopopulate the search bar with the query being used. This can be helpful for demonstrating how to form your own queries

Supported query filters:

  • id - Ticket ID
  • title - Ticket Title
  • desc - Ticket Description
  • owner - Ticket Owner
  • author - Ticket Author
  • dev - Ticket Developer
  • qa - Ticket QA
  • type - Ticket Type
  • state - Ticket State
  • priority - Ticket Priority
  • releaseid - ID of Ticket Release
  • invested - Ticket Total Investment
  • investeduser and investeduseramount - Investments Amount for Specific User

Example queries:

#Tickets owned by user 'patricks' with 'Install' in the title
owner:patricks and title:"Install"
#Ticket with ID 4
id:4
#Tickets with an investment of 20 or more
invested>=20
#Tickets 'patricks' has an investment of 10 or more. These filters must be used as a pair.
investeduser:patricks and investeduseramount>=10

FAQ

Why does MergeBack need internet access?

On startup and periodically during execution MergeBack will heartbeat to the licensing server to check the validity of the license key. We do not collect personal user information but may collect non-identifying data to detect compromised license keys.

What happens when my license expires?

When MergeBack detects license expiration or is unable to contact the licensing server it will go into 'read-only' mode. Most functionality will continue to work but key actions like creating tickets, adding users, etc will start to fail.

The administrator can change the license key or force an immediate check of it in the 'Settings' screen of the server management interface
